Laser rangefinder modules serve as critical components in a wide range of electro-optical systems(Laser Rangefinder Module For Electro Optical System), offering precise distance measurement capabilities across various applications. These sophisticated devices utilize laser technology to accurately determine the distance between the module and a target object, making them invaluable tools in both military and commercial settings.

What are the key differences between military and commercial laser rangefinder modules?

Performance Requirements and Specifications

Military-grade laser rangefinder modules for electro-optical systems typically adhere to more stringent performance specifications than their commercial counterparts. These devices must function reliably in extreme conditions, including harsh weather, high altitudes, and battlefield environments. Military applications often require extended range capabilities, with some laser range finder modules able to measure distances up to several kilometers with high precision. The accuracy requirements are typically in the range of ±1 meter or better, even at maximum range. Military-grade modules must also meet strict military standards for durability, electromagnetic compatibility, and resistance to shock and vibration.

Durability and Environmental Resistance

Military-grade modules are engineered to withstand extreme operational conditions that commercial modules may never encounter. These include temperature ranges from arctic (-40°C) to desert (+85°C) environments, humidity levels from dry to tropical, and exposure to salt spray, sand, dust, and precipitation. Military laser range finder modules typically feature robust housings made from aircraft-grade aluminum or similarly durable materials, often with special coatings to resist corrosion. They undergo rigorous waterproofing (typically to IP67 or higher standards) and are designed to withstand significant mechanical shock and vibration.

Cost and Accessibility Factors

The cost differential between military and commercial laser rangefinder modules for electro-optical systems is substantial. Military-grade modules typically command premium prices due to several factors: the advanced materials used in their construction, specialized manufacturing techniques, extensive testing protocols, and the enhanced performance characteristics required for defense applications. Military laser ranging modules might cost anywhere from several thousand to tens of thousands of dollars per unit. In contrast, commercial applications benefit from greater accessibility and generally lower price points, with modules ranging from a few hundred to a few thousand dollars depending on specifications.

How can laser rangefinder modules enhance accuracy in targeting systems?

Precision Measurement Technology

Laser rangefinder modules for electro-optical systems utilize sophisticated time-of-flight principles to achieve remarkable accuracy. These modules emit short, focused laser pulses toward a target and measure the precise time taken for the reflected signal to return. Modern laser ranging modules employ advanced signal processing algorithms to filter noise and compensate for atmospheric conditions, further enhancing their accuracy. The best commercial and military-grade modules achieve measurement accuracies of ±0.5 meters or better, even at distances of several kilometers. This combination of speed and accuracy makes these modules indispensable components in advanced electro-optical systems across numerous industries.

Integration with Other Sensor Technologies

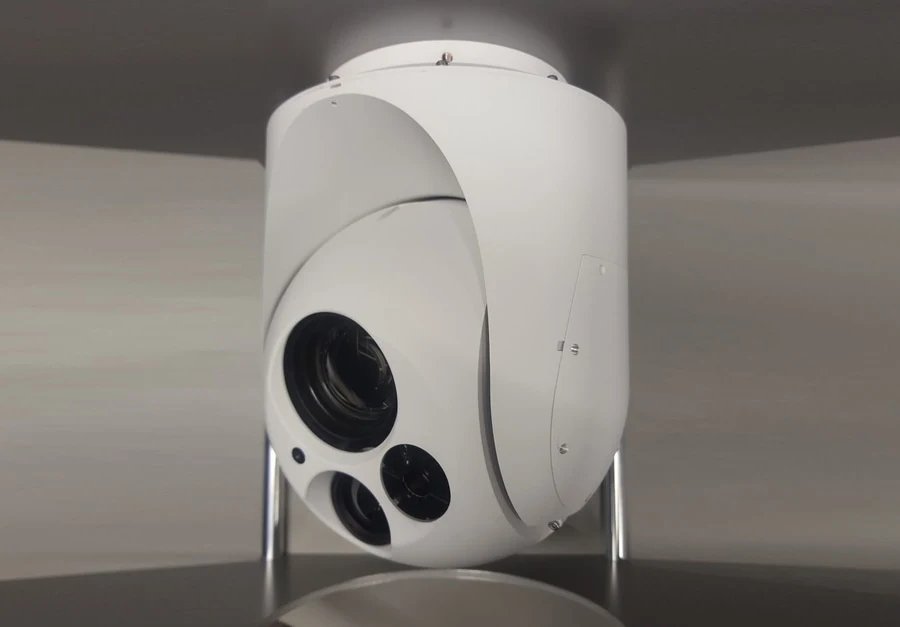

Advanced electro-optical platforms typically combine laser ranging modules with thermal imaging, visible-light cameras, GPS receivers, digital compasses, and inertial measurement units. This sensor fusion approach enables systems to simultaneously detect, identify, track, and range targets under diverse operational conditions. Modern integration frameworks utilize sophisticated algorithms to correlate data from multiple sensors, creating a unified operational picture with enhanced accuracy and reliability. The compact size of contemporary laser rangefinder modules facilitates their incorporation into multi-sensor packages without excessive weight or space requirements.

Real-time Feedback and Adjustment Capabilities

Modern laser rangefinder modules for electro-optical systems deliver instantaneous distance measurements at frequencies of up to several kilohertz, enabling continuous monitoring of moving targets with minimal latency. This real-time feedback creates a dynamic targeting loop where distance information is constantly updated, allowing for immediate adjustments to accommodate target movement, environmental changes, or platform motion. The latest laser ranging modules incorporate predictive algorithms that can anticipate target movement patterns, further enhancing tracking performance. Additionally, many advanced modules feature programmable measurement modes that automatically adjust parameters based on target characteristics and environmental conditions.

What advancements are being made in laser rangefinder module technology?

Miniaturization and Weight Reduction

Modern compact laser range finder modules can measure a fraction of the size of their predecessors – some advanced models now occupy volumes less than 50 cubic centimeters and weigh under 100 grams. This dramatic reduction has been achieved through innovations in micro-optics, highly integrated circuit design, and advanced manufacturing techniques. Smaller diode lasers with improved beam quality and detector arrays with enhanced sensitivity have contributed significantly to this miniaturization trend. Hainan Eyoung Technology Co., Ltd. has been at the forefront of this miniaturization revolution, developing ultra-compact laser ranging modules that maintain exceptional performance despite their reduced footprint.

Improved Range and Accuracy Performance

Today's advanced modules achieve previously impossible combinations of range, accuracy, and reliability. Modern long range rangefinder modules can accurately measure distances from less than a meter to over 20 kilometers, depending on the specific design and target characteristics. Measurement accuracy has similarly improved, with premium modules achieving precision better than ±0.5 meters even at extended ranges. The laser rangefinder modules developed by Hainan Eyoung Technology operate at a laser wavelength of 1535nm, optimized for long-distance measurement while maintaining Class I eye-safety standards. Their high measuring frequency, stable performance, and exceptional accuracy represent the cutting edge of ranging technology.

Multi-function Capabilities and Smart Features

Modern modules increasingly serve as intelligent subsystems rather than simple components, offering system integrators unprecedented versatility and functionality. These advanced laser ranging modules often incorporate programmable measurement modes that automatically adjust parameters based on target characteristics and environmental conditions. Many feature built-in target discrimination algorithms that can differentiate between multiple returns, identifying the most relevant target among several possibilities. Some cutting-edge modules integrate additional sensing capabilities, such as temperature monitoring, inclination measurement, and even rudimentary target classification based on reflection signatures.

Conclusion

Laser rangefinder modules have proven themselves as versatile components that seamlessly bridge military and commercial electro-optical applications. Their precision, durability, and adaptability make them essential for tasks ranging from battlefield targeting to industrial automation and surveying. As technology continues to advance with improved miniaturization, enhanced performance, and intelligent features, these modules will remain at the forefront of distance measurement technology across diverse sectors.

At Hainan Eyoung Technology Co., Ltd., we specialize in laser distance measurement within the laser optoelectronics industry. With a dedicated R&D team, our own factory, and a solid customer network, we offer quick, reliable service, including OEM/ODM/OBM solutions. Trust us for quality products and excellent customer service. Reach us at evelyn@eyoungtec.com.
