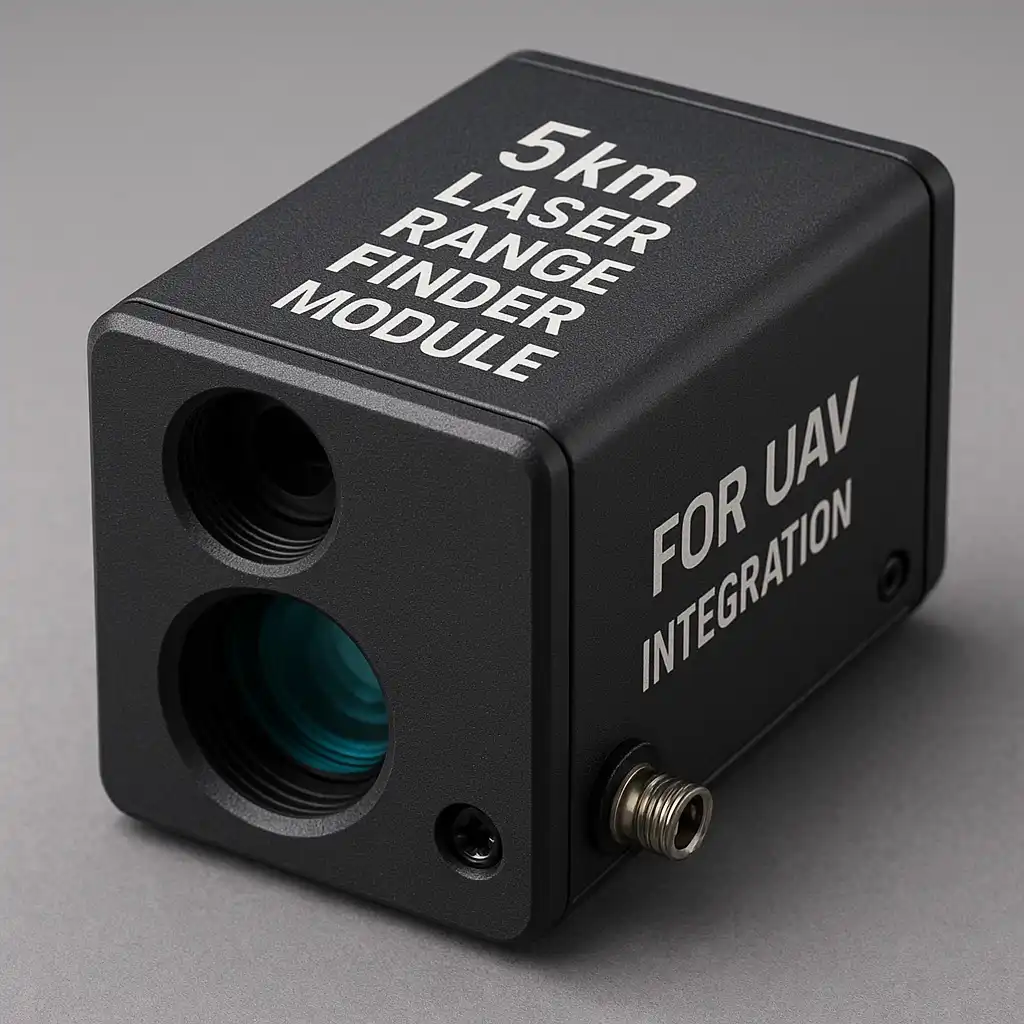

How Accurate is a 5KM Laser Range Finding Module?
Laser range finding technology has evolved significantly over the years, offering increasingly accurate distance measurement capabilities for various applications. The 5KM Laser Range Finding Module represents an advanced solution for long-distance measurement needs, combining precision engineering with sophisticated optics. This article explores the accuracy factors, applications, and considerations when selecting a 5KM Laser Range Finding Module, providing valuable insights for professionals seeking reliable distance measurement solutions.
What factors affect the accuracy of a 5KM Laser Range Finding Module?
Environmental Conditions Impact on Measurement Precision
The accuracy of a 5KM Laser Range Finding Module is significantly influenced by environmental conditions during operation. Atmospheric conditions such as fog, rain, snow, and dust particles can interfere with the laser beam's path, causing scattering and absorption of light signals. Temperature variations can affect internal components, potentially causing thermal expansion or contraction that impacts calibration. Extreme temperature fluctuations may introduce measurement errors of ±0.5 to 2 meters at maximum range. Atmospheric pressure and humidity levels can alter the refractive index of air, directly affecting how the laser beam travels. High-quality 5KM Laser Range Finding Modules incorporate temperature compensation algorithms and sealed optical paths to minimize these environmental effects.
Target Surface Characteristics and Reflectivity Considerations
The surface characteristics of the target being measured play a crucial role in determining accuracy. Reflectivity, texture, angle, and material composition directly affect how much laser energy returns to the receiver. Highly reflective surfaces like polished metal or retroreflective materials can enable maximum range and accuracy, often allowing the 5KM Laser Range Finding Module to achieve its rated accuracy of ±1 meter at full distance. Dark, rough, or highly absorptive surfaces may reduce the effective range and precision. The angle of incidence also matters—perpendicular surfaces provide the most reliable readings. Professional-grade 5KM Laser Range Finding Modules incorporate signal processing algorithms that help compensate for varying reflectivity conditions.
Instrument Specifications and Calibration Requirements
The inherent specifications and calibration state of the module represent fundamental accuracy determinants. High-quality modules typically offer accuracy ratings of ±0.5 to ±2 meters throughout their operational range, with precision gradually decreasing at maximum distances. The quality of optical components directly impacts measurement precision. Similarly, the resolution of timing circuits affects the granularity of distance readings. Most commercial 5KM Laser Range Finding Modules employ Class 1 or Class 2 laser emitters with wavelengths between 905-1550nm. Regular calibration is essential—manufacturers typically recommend intervals of 6-12 months, depending on usage intensity and conditions. Users should also consider the module's minimum measurable distance, as many have a blind zone of 5-10 meters.
How does a 5KM Laser Range Finding Module compare to other distance measurement technologies?
Precision Comparison with GPS and Ultrasonic Systems
When comparing a 5KM Laser Range Finding Module with GPS and ultrasonic measurement technologies, distinct performance differences emerge. GPS systems typically offer accuracy ranges of 2-10 meters without correction and 10-100 centimeters with differential correction, making them less precise than laser technology for specific point-to-point measurements. While GPS excels at providing absolute positioning over vast areas, it cannot match the directional precision of a laser module. Ultrasonic systems, while economical and effective for indoor applications, are limited in range (typically 10-15 meters maximum) and accuracy (±1-2% of the measured distance). The 5KM Laser Range Finding Module offers superior directionality, allowing users to target specific points with precision. However, unlike GPS, laser range finders require line-of-sight to the target and cannot work through obstacles.
Speed and Response Time Advantages
The 5KM Laser Range Finding Module demonstrates significant advantages in measurement speed and response time. Modern laser modules can complete measurements in milliseconds (typically 0.3-0.7 seconds for a full 5KM measurement), allowing for near-real-time distance acquisition. This rapid response enables applications requiring continuous monitoring or quick decision-making. By comparison, traditional optical methods require longer setup and alignment times. The module's quick measurement capability is particularly valuable in moving applications, such as vehicles, drones, or robotics platforms. Most professional-grade modules can perform multiple measurements per second at shorter distances, though maximum range measurements may require slightly longer integration times. Modern 5KM Laser Range Finding Modules often include processors that apply algorithms for multi-target discrimination.
Cost-Effectiveness and Implementation Considerations
Professional-grade 5KM modules typically range from $1,500 to $5,000, positioning them as a mid-range investment compared to high-end GPS RTK systems or basic ultrasonic sensors. The total implementation cost extends beyond hardware—integration engineering, power supply requirements, and environmental protection all contribute to the overall expense. The 5KM Laser Range Finding Module generally requires less supporting infrastructure than comparable technologies, operating independently without base stations or external calibration facilities. Power consumption is relatively efficient, with most modules drawing 2-5 watts during operation. Maintenance requirements are minimal, typically limited to optical surface cleaning and periodic calibration verification. The long operational lifespan of solid-state laser components (often 10,000+ hours) contributes to favorable long-term cost structures.
What are the best applications for a 5KM Laser Range Finding Module?
Military and Defense Surveillance Systems
The exceptional range and precision of 5KM Laser Range Finding Modules make them invaluable in military and defense surveillance systems. These modules enable accurate target acquisition and threat assessment at standoff distances. In perimeter security applications, they can continuously monitor vast areas, instantly calculating the distance to any detected intrusion with meter-level precision. Military reconnaissance units utilize these modules for rapid battlefield mapping, allowing commanders to make tactical decisions based on precise terrain measurements. Advanced integration with electro-optical systems creates multifunctional surveillance platforms that combine visual identification with accurate distance measurement. Many defense applications employ modules with eye-safe 1550nm wavelength lasers that remain undetectable to night vision equipment. Military-grade modules often incorporate additional hardening against electromagnetic interference, vibration resistance, and extended temperature operation ranges.
Surveying and Geospatial Mapping Applications
In professional surveying and geospatial mapping, 5KM Laser Range Finding Modules enable rapid collection of precise measurements for topographical models and structural surveys. When integrated into total station systems, they allow surveyors to create comprehensive site maps without requiring physical access to each measurement point. The module's ability to deliver centimeter-level accuracy supports applications like mining operations, where precise volumetric calculations directly impact production planning. Urban planning benefits from the capacity to quickly measure building heights, setbacks, and infrastructure dimensions across large areas. Conservation programs utilize these modules to create detailed habitat maps without disturbing sensitive ecosystems. Many modern modules feature digital interfaces that connect with Geographic Information System (GIS) software, allowing automatic georeferencing of collected measurements.
Industrial Automation and Safety System Integration
The industrial sector increasingly relies on 5KM Laser Range Finding Modules to enhance automation systems and safety protocols. Manufacturing facilities implement these modules to maintain precise positioning control of overhead cranes and material handling equipment. The ability to continuously monitor distances between moving machinery components enables collision avoidance systems. In port operations, these modules assist in container positioning and vessel docking procedures. Mining and quarry operations benefit from the modules' ability to monitor highwall stability through continuous distance measurement. Power transmission infrastructure maintenance utilizes these modules to verify safe clearance distances. Many industrial implementations leverage programmable alarm thresholds, which can trigger automated responses when measured distances exceed safety parameters. Integration with industrial control systems enables these modules to function as critical sensors within larger automation architectures.
Conclusion
The accuracy of a 5KM Laser Range Finding Module depends on multiple factors including environmental conditions, target characteristics, and device specifications. These advanced modules offer exceptional precision for long-distance measurements, outperforming alternative technologies in specific applications. With appropriate implementation and understanding of influential factors, these devices provide reliable distance measurement for military, surveying, and industrial applications. As a leading manufacturer in the laser optoelectronics industry, Hainan Eyoung Technology Co., Ltd. excels in laser distance measurement solutions. Our strong R&D, production, and inspection capabilities, along with OEM/ODM/OBM services, ensure customer satisfaction and product excellence. Contact evelyn@eyoungtec.com for more information.
