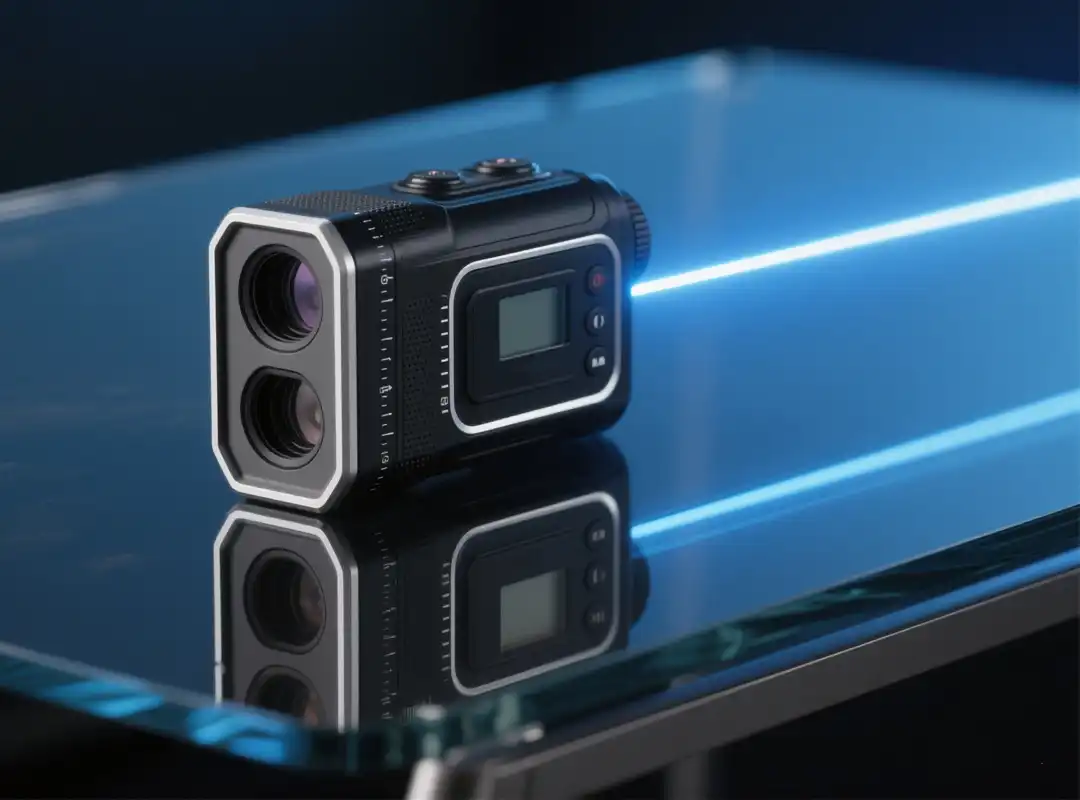

When it comes to distance measurement technology, Micro Diode Laser Rangefinder Modules represent one of the most advanced solutions available today. These compact devices combine precision engineering with sophisticated laser technology to deliver highly accurate distance measurements across various applications. Many professionals and industries rely on these modules for their exceptional accuracy, but just how precise are they? This article explores the accuracy specifications, influencing factors, and real-world applications of Micro Diode Laser Rangefinder Modules.

What factors affect the accuracy of a Micro Diode Laser Rangefinder Module?

Environmental Conditions and Their Impact

Environmental conditions significantly influence the accuracy of Micro Diode Laser Rangefinder Modules. Temperature fluctuations can affect the performance of the laser diode and its electronics, causing variations in measurement results. Extreme temperatures may lead to thermal expansion or contraction of components, resulting in minor accuracy deviations. Humidity levels impact laser beam propagation, especially over longer distances, while atmospheric conditions like fog, rain, or dust can scatter or absorb the laser beam, reducing range and accuracy. High-quality Micro Diode Laser Rangefinder Modules typically incorporate temperature compensation algorithms and sealed housings to minimize these environmental effects. Premium modules can maintain accuracy within ±1mm even when operating in temperatures ranging from -10°C to 50°C, demonstrating their resilience against environmental variables.

Target Surface Characteristics and Reflectivity

Target surface characteristics significantly influence the accuracy of Micro Diode Laser Rangefinder Modules. Highly reflective surfaces like polished metal provide optimal conditions for accurate measurements by returning strong signals to the module's receiver. Conversely, dark, rough, or absorbent surfaces may reduce signal strength, affecting measurement accuracy. The laser beam's incidence angle also matters, with perpendicular incidence typically yielding the most accurate results. Modern Micro Diode Laser Rangefinder Modules incorporate signal processing algorithms to compensate for varying surface reflectivity, maintaining high accuracy across different materials. Some advanced modules include multiple measurement modes optimized for specific surface types. The latest generation modules can provide reliable measurements on surfaces with reflectivity as low as 10%, significantly expanding their application range.

Technical Specifications and Quality of Components

The inherent accuracy of a Micro Diode Laser Rangefinder Module largely depends on its technical specifications and component quality. Premium modules feature high-grade laser diodes with stable wavelength emissions, precise timing circuits, and sophisticated signal processing algorithms. The timing circuit's resolution is particularly critical, as it directly affects the device's ability to precisely measure the laser pulse's travel time. Higher resolution timing circuits detect smaller time differences, enabling finer distance measurements. Additionally, the quality of optical components influences how well the module can focus the laser beam and isolate the returned signal from ambient light interference. Superior Micro Diode Laser Rangefinder Modules may offer accuracy ratings of ±0.5mm at ranges up to 40 meters, while basic models might provide accuracy within ±2-3mm. The detection circuit's signal-to-noise ratio also plays a crucial role, with higher values enabling more reliable measurements even under challenging conditions.

How does the accuracy of a Micro Diode Laser Rangefinder Module compare to other measurement technologies?

Comparison with Ultrasonic Rangefinders

Micro Diode Laser Rangefinder Modules offer significant accuracy advantages over ultrasonic rangefinders. While ultrasonic sensors rely on sound waves traveling at approximately 343 meters per second, laser rangefinders use light traveling at roughly 300,000 kilometers per second. This fundamental difference gives laser technology an inherent precision advantage. Typically, Micro Diode Laser Rangefinder Modules offer accuracy within ±1-3mm, while ultrasonic rangefinders generally provide accuracy in the range of ±10-25mm. Ultrasonic measurements are more susceptible to environmental factors such as temperature and humidity that affect sound speed. Laser rangefinders also offer superior directionality compared to ultrasonic sensors' cone-shaped detection pattern, allowing precise targeting of specific points. While ultrasonic sensors may suffice for detecting presence or rough distance estimates, applications requiring precise measurements benefit from the superior accuracy of Micro Diode Laser Rangefinder Modules.

Comparison with Infrared Distance Sensors

Infrared distance sensors differ significantly from Micro Diode Laser Rangefinder Modules in terms of accuracy and operating principles. Most IR sensors use triangulation or intensity-based methods rather than time-of-flight measurements employed by laser rangefinders. Micro Diode Laser Rangefinder Modules typically achieve accuracy ratings of ±1-3mm across their entire operating range, which can extend from a few centimeters to several hundred meters. In contrast, IR sensors usually offer accuracy within ±5-30mm, with accuracy degrading significantly as distance increases. IR sensors are highly sensitive to ambient light conditions and may produce unreliable results in bright sunlight or variable lighting environments. The accuracy of IR sensors also depends heavily on target surface reflectivity and color. Laser rangefinders maintain better consistency across different materials and colors and offer superior range capabilities, with some models accurately measuring distances up to 150 meters, while most IR sensors are limited to effective ranges under 5 meters.

Comparison with Traditional Manual Measurement Methods

Traditional manual measurement methods such as tape measures have served industries for centuries but fall short of the accuracy, speed, and convenience offered by Micro Diode Laser Rangefinder Modules. Manual measurements are prone to human error, with accuracy typically limited to ±1-5mm even when conducted by skilled operators. Factors such as tape sag, parallax error, and misalignment compromise the reliability of manual measurements, especially over longer distances. In contrast, Micro Diode Laser Rangefinder Modules deliver consistent accuracy within ±1-3mm regardless of the measurement distance within their specified range. These modules excel in situations requiring repeated measurements or real-time distance monitoring. The digital nature of laser measurements allows for immediate data logging and system integration. Additionally, Micro Diode Laser Rangefinder Modules can safely measure distances in hazardous environments without putting operators at risk. While traditional measurement tools remain useful for certain applications, the superior accuracy, repeatability, and versatility of laser rangefinders make them indispensable in modern precision measurement scenarios.

What real-world applications demand the high accuracy of Micro Diode Laser Rangefinder Modules?

Precision Manufacturing and Quality Control

In precision manufacturing, stringent accuracy requirements make Micro Diode Laser Rangefinder Modules essential in modern production lines. These modules enable real-time dimensional verification during manufacturing, ensuring components meet exact specifications without interrupting production flow. With typical accuracy ratings of ±0.5-2mm, these devices detect minute deviations that might otherwise result in defective products. In automotive manufacturing, Micro Diode Laser Rangefinder Modules verify critical dimensions of body panels, engine components, and interior elements with unmatched precision. Their non-contact nature prevents potential damage to delicate surfaces during quality control. These modules integrate into automated inspection systems, allowing for 100% part inspection rather than statistical sampling, significantly reducing defect rates. The ability of high-end Micro Diode Laser Rangefinder Modules to maintain accuracy even in vibration-prone industrial environments makes them valuable for in-line quality control applications. Many manufacturers deploy multiple laser modules throughout their production lines, creating comprehensive dimensional verification systems that ensure consistent product quality while gathering valuable process data.

Robotics and Autonomous Navigation

Robotics and autonomous navigation rely heavily on the exceptional accuracy of Micro Diode Laser Rangefinder Modules for spatial awareness and precise positioning. These compact devices serve as the "eyes" of robots, allowing them to map surroundings, detect obstacles, and navigate complex environments with remarkable precision. In warehouse automation, robots equipped with these modules can position themselves with millimeter-level accuracy when picking items or navigating narrow aisles. The rapid measurement capabilities – often exceeding 100 measurements per second – enable real-time path planning and collision avoidance in dynamic environments. In advanced applications, multiple laser rangefinder modules work together to create detailed three-dimensional maps through techniques like simultaneous localization and mapping (SLAM). The accuracy of these spatial models directly correlates with the precision of the rangefinder measurements. In collaborative robotics where humans and machines share workspaces, precise distance measurements enable robots to maintain safe operating distances while maximizing productive interaction. The low power consumption and compact size of modern Micro Diode Laser Rangefinder Modules make them ideal for integration into smaller robots and drones.

Surveying and Construction

The surveying and construction industries have embraced Micro Diode Laser Rangefinder Modules as indispensable tools for achieving precise measurements in challenging environments. Traditional surveying equipment often requires line-of-sight between multiple points and complex setup procedures, whereas compact laser rangefinder modules can be rapidly deployed to measure difficult-to-access areas. On construction sites, these modules verify structural dimensions, check alignment of building elements, and ensure compliance with design specifications with accuracy typically within ±1-2mm over distances up to 100 meters. This precision helps prevent costly errors that might otherwise remain undetected until later construction phases. Modern building information modeling workflows benefit from the integration of Micro Diode Laser Rangefinder Module data, allowing real-world measurements to be directly compared with digital design models. In renovation projects, these modules precisely measure existing structures for custom-fitted components. Their ability to function reliably in varying outdoor lighting conditions ensures consistent measurement accuracy throughout the construction process. When mounted on drones or mobile platforms, these modules enable rapid surveying of large areas without putting personnel at risk.

Conclusion

Micro Diode Laser Rangefinder Modules represent the pinnacle of distance measurement technology, offering exceptional accuracy typically within ±0.5-3mm depending on the specific model and operating conditions. Their precision surpasses alternative technologies like ultrasonic or infrared sensors, particularly in challenging environments or over longer distances. While factors such as environmental conditions, target surface characteristics, and component quality can influence performance, modern modules incorporate sophisticated compensation mechanisms to maintain reliability across diverse applications. Their unparalleled accuracy continues to drive innovation across manufacturing, robotics, construction, and numerous other fields.

Hainan Eyoung Technology Co., Ltd. is a key player in the laser optoelectronics sector, providing high-quality laser distance measurement products. Backed by a strong R&D team, in-house manufacturing, and a loyal customer base, we offer OEM/ODM/OBM services with fast responses and precise packaging. Contact us at sales@eyoungtek.com for more details.
