Electro-optical systems face significant challenges when deployed in harsh environments, requiring specialized design considerations to maintain operational reliability and performance. These sophisticated systems, which include technologies like drone gimbal cameras, thermal imaging devices, and aerial surveillance equipment, must function reliably despite exposure to extreme temperatures, vibration, moisture, dust, and other adverse conditions. Understanding how these systems perform under duress is crucial for industries relying on consistent imaging and sensing capabilities in challenging operational settings.

What Factors Affect Electro-Optical System Performance in Extreme Temperatures?

Temperature Fluctuation Impacts on Sensor Accuracy

Temperature variations dramatically affect the performance of electro-optical systems, particularly their sensor components. When subjected to extreme heat or cold, optical sensors can experience thermal drift, which causes measurement inaccuracies and degraded image quality. For instance, infrared detectors in thermal imaging cameras, a critical component in many electro-optical systems, demonstrate varying levels of sensitivity at different temperatures. At extremely low temperatures, detector responsivity may decrease, while high temperatures can increase thermal noise, reducing the signal-to-noise ratio. Advanced electro-optical systems incorporate temperature compensation algorithms and thermal stabilization mechanisms to mitigate these effects. High-quality 2-axis gimbal cameras implement temperature sensors that continuously monitor internal conditions and adjust operational parameters accordingly, ensuring consistent performance across diverse thermal environments.

Mechanical Stress on Optical Components

Mechanical stress induced by temperature changes poses significant challenges to electro-optical system integrity. As temperatures fluctuate, materials expand and contract at different rates, potentially causing misalignment of optical components, deformation of lens elements, or strain on delicate mechanical structures. These issues are particularly problematic for precision instruments like drone gimbal camera payloads, where even minor misalignments can significantly degrade image quality and accuracy. Modern electro-optical systems address these challenges through materials selection, using components with matched thermal expansion coefficients or specialized alloys designed for thermal stability. Additionally, advanced systems incorporate flexible mounting methods and stress-relieving designs that accommodate thermal expansion without compromising optical alignment. These engineering solutions enable electro-optical systems to maintain calibration and performance integrity despite experiencing wide temperature ranges during operation.

Energy Consumption and Battery Performance

Extreme temperatures significantly impact the power systems supporting electro-optical equipment, affecting overall system endurance and reliability. Cold environments reduce battery efficiency and capacity, potentially shortening operational time for portable electro-optical systems like drone-mounted cameras. Conversely, high temperatures accelerate battery degradation and may trigger thermal protection circuits that limit power draw or shut down systems entirely. Advanced electro-optical systems implement power management strategies including intelligent battery heating systems for cold environments, thermally efficient electronic designs that minimize heat generation, and adaptive power modes that balance performance requirements with energy consumption. For instance, sophisticated drone gimbal camera systems feature thermal insulation around battery compartments and power-efficient processors that adjust performance based on thermal conditions, ensuring maximum operational time without compromising core functionality in challenging thermal environments.

How Can Electro-Optical Systems Withstand Vibration and Shock Exposure?

Stabilization Technologies for Image Quality

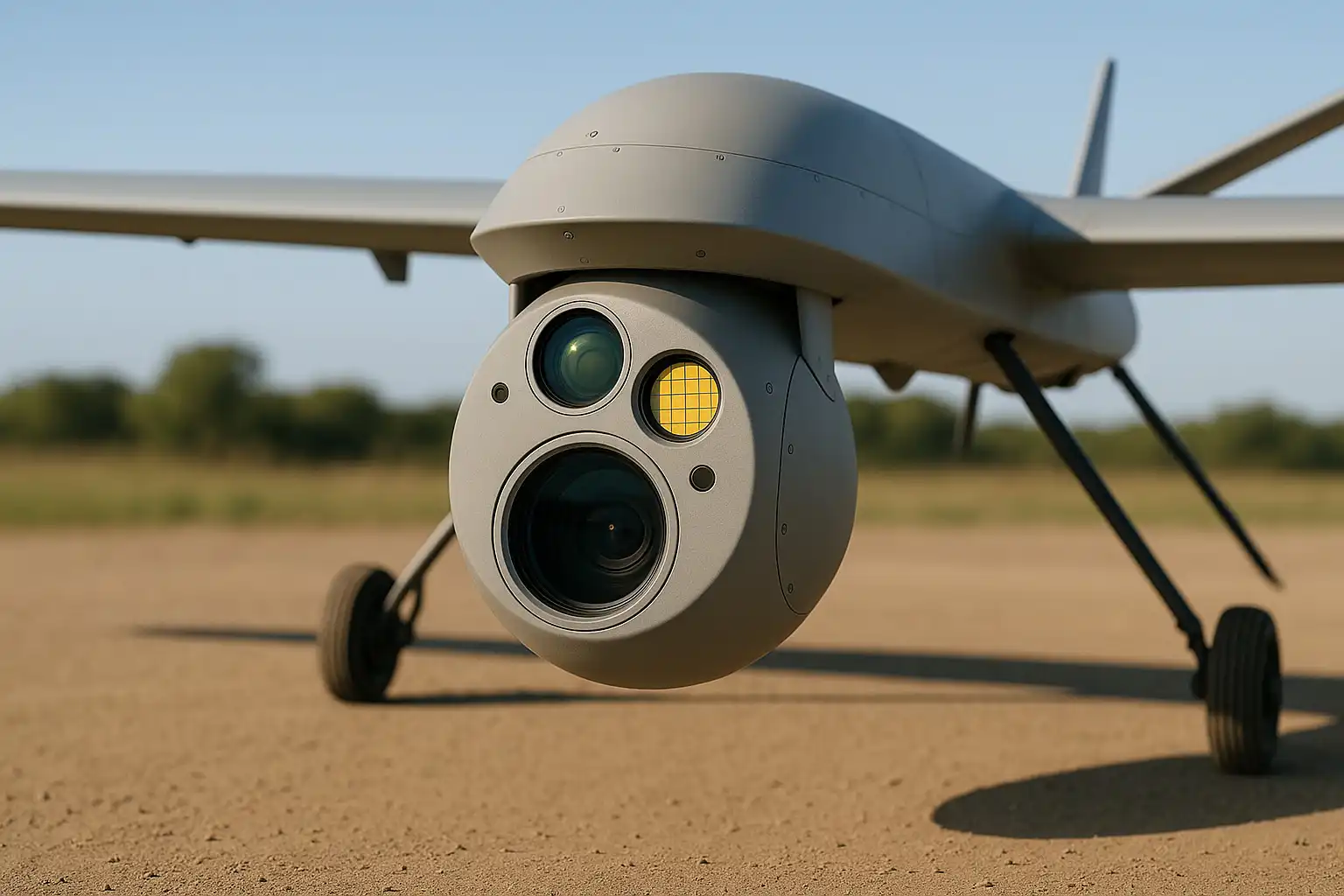

Vibration represents one of the most persistent challenges to electro-optical system performance, particularly for aerial and vehicle-mounted applications. Unstabilized systems produce blurred images and inaccurate measurements under vibration conditions. Modern electro-optical systems overcome these limitations through multi-layered stabilization approaches. At the heart of advanced systems like drone gimbal camera payloads are sophisticated 2-axis and 3-axis gimbal mechanisms that physically isolate optical components from platform movements. These gimbals incorporate precision motors and encoders that detect and counteract motion in real-time, maintaining steady aim despite aircraft turbulence or vehicle movement. Furthermore, electronic image stabilization algorithms work in conjunction with mechanical systems to analyze frame-to-frame pixel movements and apply compensatory adjustments. The most advanced electro-optical systems combine these approaches with vibration-dampening materials and adaptive algorithms that identify vibration signatures and implement tailored stabilization responses, ensuring crystal-clear imaging even in high-vibration environments such as helicopter-mounted surveillance or industrial inspection applications.

Ruggedized Housing and Mounting Solutions

Physical protection forms the first line of defense for electro-optical systems operating in high-shock environments. Ruggedized housings designed specifically for electro-optical systems incorporate features such as reinforced frames, shock-absorbing materials, and specialized mounting interfaces that isolate sensitive components from impact forces. These protective enclosures must balance durability with weight considerations, particularly for drone gimbal camera applications where payload weight directly impacts flight time and maneuverability. Advanced electro-optical system housings often employ composite materials that combine strength with lightweight properties, strategically positioned reinforcement in high-stress areas, and modular designs that allow damaged components to be replaced without requiring complete system replacement. Additionally, sophisticated mounting systems incorporate vibration isolation bushings, dampeners, and flexible connectors that prevent shock transmission from the carrier platform to the electro-optical equipment. These engineering solutions enable electro-optical systems to withstand rough handling, transportation impacts, and operational shocks while maintaining precise optical alignment and internal component integrity.

Vibration Testing and Certification Standards

Ensuring electro-optical systems perform reliably under vibration and shock conditions requires comprehensive testing against established industry standards. Military-grade electro-optical systems typically undergo rigorous testing according to standards like MIL-STD-810, which defines specific shock and vibration profiles representing real-world operational conditions. Commercial electro-optical systems, including specialized drone gimbal camera payloads, are often tested against standards such as DO-160 for aviation equipment or IEC 60068 for environmental testing of electronic equipment. These tests subject electro-optical systems to precisely controlled vibration frequencies, amplitudes, and shock impacts while monitoring performance parameters such as image stability, targeting accuracy, and component integrity. Advanced manufacturers conduct additional testing with application-specific profiles that simulate the exact conditions their electro-optical systems will face in the field. For instance, drone-mounted systems might undergo testing that mimics the unique vibration signatures of specific aircraft models or operational scenarios, ensuring the electro-optical system maintains performance across its entire intended operational envelope.

What Moisture and Contaminant Protection Features Are Essential for Electro-Optical Systems?

Sealing Technologies and IP Ratings

Environmental sealing represents a critical consideration for electro-optical systems exposed to moisture, dust, and contaminants. Industry-standard Ingress Protection (IP) ratings provide a standardized framework for evaluating electro-optical system resistance to environmental infiltration. For example, an IP67-rated electro-optical system can withstand temporary immersion in water, while an IP54 rating indicates protection against dust and splashing water. Advanced electro-optical systems implement sophisticated sealing technologies including compression gaskets, O-ring seals, and specialized adhesives that prevent moisture ingress while accommodating thermal expansion and mechanical stress. Additionally, some high-performance electro-optical systems feature pressure equalization systems that prevent seal failure during rapid altitude changes—a critical feature for drone gimbal camera applications operating in variable atmospheric conditions. These specialized sealing solutions must be carefully engineered to protect sensitive electronic and optical components without impeding necessary mechanical movement or heat dissipation, requiring sophisticated design approaches that balance environmental protection with operational requirements.

Optical Window Design and Maintenance

The optical window represents both a critical component for image quality and a vulnerable point for contamination in any electro-optical system. Advanced window designs incorporate specialized coatings that serve multiple protective functions: hydrophobic treatments that cause water to bead and roll off rather than forming vision-obscuring droplets; oleophobic coatings that resist fingerprints and oils; and hardened surfaces resistant to scratching and abrasion. Some sophisticated electro-optical systems feature self-cleaning mechanisms such as tiny wiper systems, air knives that create protective air barriers, or even heating elements that accelerate evaporation of moisture. For drone gimbal camera applications, optical window design must balance protective features with weight and optical performance considerations, often resulting in multi-layer window systems with optimized antireflective properties. Maintenance procedures are equally important, with advanced electro-optical systems incorporating features that facilitate field cleaning without risking internal contamination, such as sealed cleaning ports or tool-free access to the window exterior while maintaining internal environmental protection.

Corrosion Resistance for Maritime and Chemical Environments

Corrosion presents a serious threat to electro-optical systems operating in maritime, industrial, or chemically aggressive environments. Salt spray, industrial pollutants, and corrosive chemicals can rapidly degrade unprotected metal components, electrical connections, and optical surfaces. To counter these threats, advanced electro-optical systems incorporate corrosion-resistant materials such as specialized aluminum alloys, titanium components, and stainless steel fasteners. Surface treatments including anodizing, powder coating, and advanced multi-layer finishes provide additional protection by forming barrier layers that prevent corrosive substances from contacting base materials. For electrical connections, gold-plated contacts resist oxidation, while conformal coatings protect circuit boards from moisture and contaminants. Sophisticated drone gimbal camera systems designed for maritime surveillance incorporate additional protective measures such as sacrificial anodes that preferentially corrode to protect critical system components, and specialized venting systems that allow pressure equalization without admitting corrosive atmosphere. These protective features enable electro-optical systems to maintain operational integrity despite prolonged exposure to harsh chemical environments that would quickly degrade conventional electronic and optical equipment.

Conclusion

Electro-optical systems in harsh environments face challenges from temperature extremes, vibration, moisture, and contaminants. Through advanced stabilization technologies, ruggedized designs, and environmental sealing, these systems maintain reliable performance in demanding conditions. Modern solutions like 2-axis gimbal cameras with thermal compensation and multi-sensor capabilities ensure consistent operation across diverse environments, making them invaluable for critical applications requiring dependable imaging and sensing capabilities.
