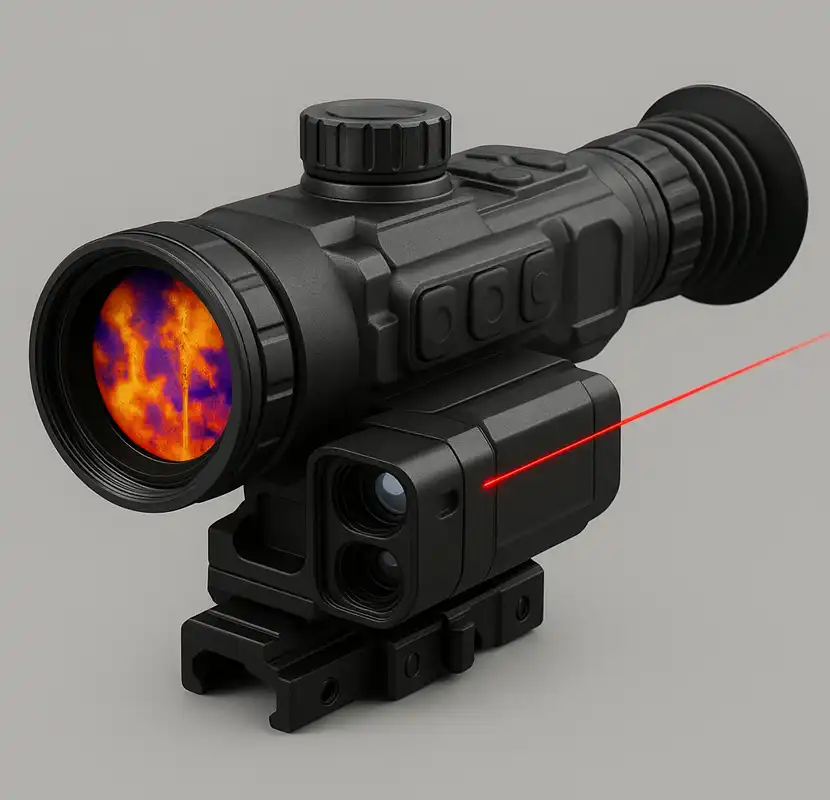

The integration of laser rangefinder modules with thermal scopes represents a significant advancement in modern optics technology. This combination enhances thermal imaging systems by providing precise distance measurements to targets, creating a comprehensive visualization and targeting solution. The synergy between these technologies offers users in military, hunting, and surveillance sectors the ability to detect heat signatures and accurately determine distance to targets, improving operational effectiveness.

What are the key benefits of using a Laser Rangefinder Module for Thermal Scope applications?

Enhanced Target Identification and Range Assessment

The integration of a Laser Rangefinder Module for Thermal Scope systems significantly improves target identification capabilities. Traditional thermal scopes excel at detecting heat signatures in low-light conditions or through visual obscurants but lack precise distance measurement abilities. When equipped with a laser rangefinder module, the thermal scope becomes a comprehensive system that both detects thermal signatures and accurately measures target distance. This dual functionality eliminates guesswork in range estimation, which is crucial for military operations, law enforcement, and hunting. The laser rangefinder module uses time-of-flight technology to calculate distances with pinpoint accuracy, typically within ±1 meter, enabling more informed decisions about engagement in challenging environments where visual distance estimation is difficult.

Improved Ballistic Calculations and Shot Placement

Incorporating a Laser Rangefinder Module for Thermal Scope systems revolutionizes ballistic calculations and shot placement accuracy. Modern modules communicate directly with the scope's internal ballistic calculator, providing real-time data that accounts for precise target distance. This integration allows automatic adjustment for bullet drop, windage, and other factors affecting projectile trajectory. For hunters and tactical operators, this means significantly improved first-shot accuracy, even at extended ranges. Advanced systems consider environmental conditions like temperature and altitude, further refining ballistic solutions. The data exchange between the rangefinder module and the thermal scope happens instantaneously, presenting adjusted reticle positions directly in the display, reducing the learning curve for long-range shooting while maximizing accuracy.

Streamlined Equipment Configuration and Weight Reduction

A major advantage of integrating a Laser Rangefinder Module for Thermal Scope systems is equipment consolidation. Traditional setups often require separate thermal optics and rangefinding devices, increasing weight and complicating equipment management. An integrated solution combines both functionalities into a single unit, reducing equipment footprint and simplifying operation. Modern modules utilize lightweight yet durable materials such as aircraft-grade aluminum and reinforced polymers, benefiting personnel who carry equipment over long distances. The unified control interface eliminates switching between devices, allowing faster target acquisition and range determination, reducing training requirements and minimizing operational errors.

How does the Laser Rangefinder Module for Thermal Scope improve accuracy in varying environmental conditions?

Performance in Adverse Weather and Low Visibility Situations

The integration of a Laser Rangefinder Module for Thermal Scope systems offers significant advantages in challenging environmental conditions. While standard optical scopes become unusable in fog, rain, or darkness, thermal scopes continue detecting heat signatures regardless of lighting conditions. Adding a laser rangefinder creates a truly all-weather targeting system. Modern modules utilize specific wavelengths that better penetrate atmospheric interference and employ signal processing algorithms to filter out interference from precipitation. Some high-end Laser Rangefinder Module for Thermal Scope systems incorporate multiple measurement pulses and averaging techniques to maintain accuracy in adverse conditions, making them invaluable for operations that must continue regardless of weather.

Compensation for Temperature Fluctuations and Atmospheric Density

Environmental factors impact both thermal imaging and laser rangefinding, and integrated systems must account for these variables. Laser Rangefinder Module for Thermal Scope systems incorporate temperature compensation mechanisms that adjust for thermal drift in both components. As ambient temperatures change, these systems automatically recalibrate to maintain consistent performance. Advanced rangefinder modules also factor in atmospheric density variations that affect laser propagation. Premium systems utilize built-in environmental sensors that measure conditions in real-time, applying appropriate corrections to rangefinding calculations. These compensation capabilities ensure reliable performance across diverse environments, from humid tropical conditions to arid deserts and high-altitude terrain.

Target Reflectivity Challenges and Multiple Target Discrimination

A significant challenge in laser rangefinding is accounting for varying target reflectivity and distinguishing between multiple potential targets. Advanced Laser Rangefinder Module for Thermal Scope systems employ algorithms that adjust sensitivity based on target surface reflective properties, ensuring accurate measurements whether ranging against reflective surfaces like water or more absorptive materials like vegetation. The integration with thermal imaging creates powerful synergy for target discrimination, as the system can identify heat signatures while simultaneously measuring distance. Premium systems can distinguish between foreground objects and actual targets by analyzing both thermal contrast and laser return signals, providing measurements specifically to the intended target.

What technical specifications should be considered when selecting a Laser Rangefinder Module for Thermal Scope?

Range Capabilities and Measurement Accuracy Specifications

When selecting a Laser Rangefinder Module for Thermal Scope systems, range capabilities and measurement accuracy are primary considerations. Top-tier modules offer maximum ranging distances from 600 meters for entry-level products to over 2,000 meters for premium military-grade options. However, realistic operational ranges for average-sized targets are typically 60-80% of the maximum rated distance. Quality systems deliver precision within ±1 meter at shorter ranges and ±2-3 meters at extended distances. Advanced modules can distinguish distance changes as small as 0.1 meters. Professionals should also consider minimum measurement distance, as some modules cannot accurately measure targets closer than 5-10 meters.

Power Requirements and Battery Life Considerations

Power management is critical when evaluating Laser Rangefinder Module for Thermal Scope systems, particularly for extended field operations. The integration of rangefinding capabilities inevitably increases power consumption, challenging battery life maintenance. Modern systems employ power-saving technologies such as standby modes and efficient processors to minimize battery drain. Typical power sources include rechargeable lithium-ion batteries or replaceable cells, with operating times ranging from 4 to 12 hours depending on usage and conditions. Cold weather particularly stresses battery systems, potentially reducing operating time by 30-50%. When selecting a system, consider not only stated battery life but also external power options and compatibility with portable power sources.

Integration Compatibility and Data Communication Protocols

Seamless integration between laser rangefinder modules and thermal scopes requires consideration of compatibility factors and communication protocols. Physical integration includes mounting systems, weight distribution, and system balance. Electronic integration involves communication protocols, with premium systems using digital interfaces that support real-time data transmission with minimal latency. Advanced Laser Rangefinder Module for Thermal Scope systems offer broader ecosystem compatibility, including Bluetooth or WiFi connectivity for transmitting data to external devices. When evaluating options, consider whether the rangefinder module is designed specifically for your thermal scope model, as purpose-built systems typically offer superior performance compared to aftermarket combinations.

Conclusion

The integration of laser rangefinder modules with thermal scopes represents a significant technological advancement that enhances targeting precision, operational efficiency, and situational awareness across various applications. By combining heat signature detection with precise distance measurement, these integrated systems overcome environmental limitations while providing critical data for accurate engagements. When selecting the appropriate solution, considerations of range capabilities, power management, and integration compatibility ensure optimal performance for specific operational requirements.
