The integration of advanced laser rangefinding technology has revolutionized modern gimbal camera systems for surveillance, defense, and industrial applications. The 9km Compact LRF Module offers unprecedented range, accuracy, and integration potential, enabling precise distance measurement up to 9 kilometers. This substantially enhances object tracking capabilities by providing critical spatial data that complements visual information, creating a comprehensive surveillance solution that outperforms traditional camera-only systems.

What makes the 9km Compact LRF Module essential for long-range surveillance systems?

Advanced Laser Technology and Range Capabilities

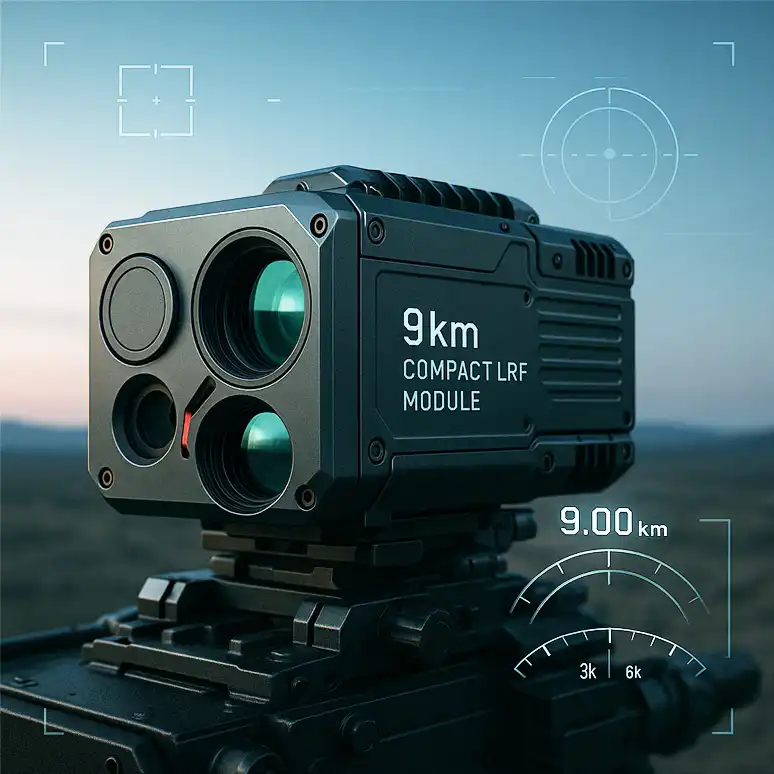

The 9km Compact LRF Module For Gimbal Camera uses state-of-the-art laser technology operating at 1550nm wavelength, providing optimal balance between range and safety. It delivers accurate measurements up to 9 kilometers with error margins as low as ±1 meter. The module's specially designed optical system maximizes beam collimation while maintaining a compact form factor, ensuring sufficient laser energy reaches distant targets for reliable measurements beyond the capabilities of standard rangefinders.

Integration Advantages with Modern Gimbal Platforms

Weighing less than 200 grams and measuring just a few centimeters, the module adds minimal payload to gimbal systems, preserving dynamic performance characteristics. It features standardized electronic interfaces including CAN bus, RS-422, and RS-232 for straightforward integration with existing control systems. The design ensures perfect alignment between the rangefinder's optical axis and camera's field of view, maintaining accuracy even during airborne or vehicle-mounted operations. Advanced power management limits consumption to less than 5 watts, allowing direct power from the gimbal platform without separate batteries.

Environmental Resilience and Operational Reliability

9km Compact LRF Module For Gimbal Camera operates reliably from -40°C to +85°C through carefully selected components and specialized thermal management. Its aircraft-grade aluminum housing provides IP67 protection against dust and water, ensuring optical clarity and electronic functionality in harsh conditions. Internal components are mounted on vibration-dampening substrates protecting sensitive optoelectronics from mechanical stresses. Extensive reliability testing includes accelerated life testing and MIL-STD compliance verification, ensuring a mean time between failures exceeding 10,000 hours.

​​​​​​​

How does the 9km Compact LRF Module improve target acquisition in dynamic environments?

Real-time Distance Data and Tracking Algorithms

The module delivers distance measurements at 1-10 Hz, allowing continuous target position updates in three-dimensional space. This distance data enhances tracking algorithms, enabling better prediction of target movement and compensation for environmental factors. The integration facilitates enhanced Kalman filtering techniques that combine optical tracking with rangefinding information for more stable performance when targets temporarily disappear. The accurate distance information also enables automatic camera focus adjustment and advanced ballistic solution computation for defense applications.

Target Discrimination and Identification Enhancements

The module adds a spatial dimension to visual data, effectively differentiating between visually similar targets at different ranges. It operates in single-target measurement or multi-pulse scanning modes, building range profiles of multi-object scenes. When paired with image processing algorithms, it enables range-gated target selection, filtering out distractions. The precise distance information helps calculate actual target dimensions from apparent visual size, aiding classification and reducing false alarms in border security, maritime surveillance, and defense applications.

Motion Prediction and Path Anticipation

By measuring absolute distance continuously, the system calculates true three-dimensional velocity vectors rather than relying solely on apparent motion. This enables accurate prediction of target paths, particularly for objects not moving perpendicular to the line of sight. The rangefinder data can be analyzed to develop acceleration profiles, maintaining tracking lock during erratic maneuvers. For aerial surveillance, it provides critical altitude information for predicting potential occlusion points, and enables implementation of collision prediction algorithms for applications like drone detection.

What role does the 9km Compact LRF Module play in enhancing gimbal camera stabilization and accuracy?

Precision Auto-Focus and Zoom Control Optimization

The module transforms auto-focus capabilities by providing direct distance measurements instead of relying on contrast-based algorithms. This delivers sharper images across varying conditions and works effectively with low-contrast targets. The precise range data enables sophisticated control of variable zoom lenses, automatically adjusting focal length to maintain consistent image size regardless of target distance. The system can also intelligently set aperture based on target distance and required depth of field, optimizing light gathering capability.

Compensation for Atmospheric and Environmental Factors

The module enhances tracking reliability by providing data that helps compensate for atmospheric influences like heat haze, humidity, and air turbulence. Tracking algorithms can implement predictive models accounting for expected atmospheric disturbance at measured distances. The rangefinder data assists in compensating for refraction effects, which cause apparent target displacement at longer ranges. For maritime applications, it helps distinguish between actual target movement and visual displacement caused by sea surface reflections or mirage effects.

Enhanced Gimbal Stabilization Through Range-Adaptive Processing

9km Compact LRF Module For Gimbal Camera improves stabilization performance by providing critical distance information. This enables implementation of range-adaptive gain control, optimizing stabilization system responsiveness based on actual target distance. The precise information helps calculate apparent target movement versus platform movement, distinguishing between genuine target motion and observation platform movement. For very distant targets, it helps compensate for Earth's curvature and rotational effects, factors significant at extreme ranges.

Conclusion

The 9km Compact LRF Module represents a transformative technology for gimbal camera systems, dramatically enhancing tracking capabilities through precise distance measurement, improved target discrimination, and optimized stabilization. By providing critical spatial data that complements visual information, this module enables more reliable tracking in challenging environments and significantly extends the effective operational range of surveillance systems across defense, security, and industrial applications.

At Hainan Eyoung Technology Co., Ltd., we specialize in laser distance measurement within the laser optoelectronics industry. With a dedicated R&D team, our own factory, and a solid customer network, we offer quick, reliable service, including OEM/ODM/OBM solutions. Trust us for quality products and excellent customer service. Reach us at evelyn@eyoungtec.com.
