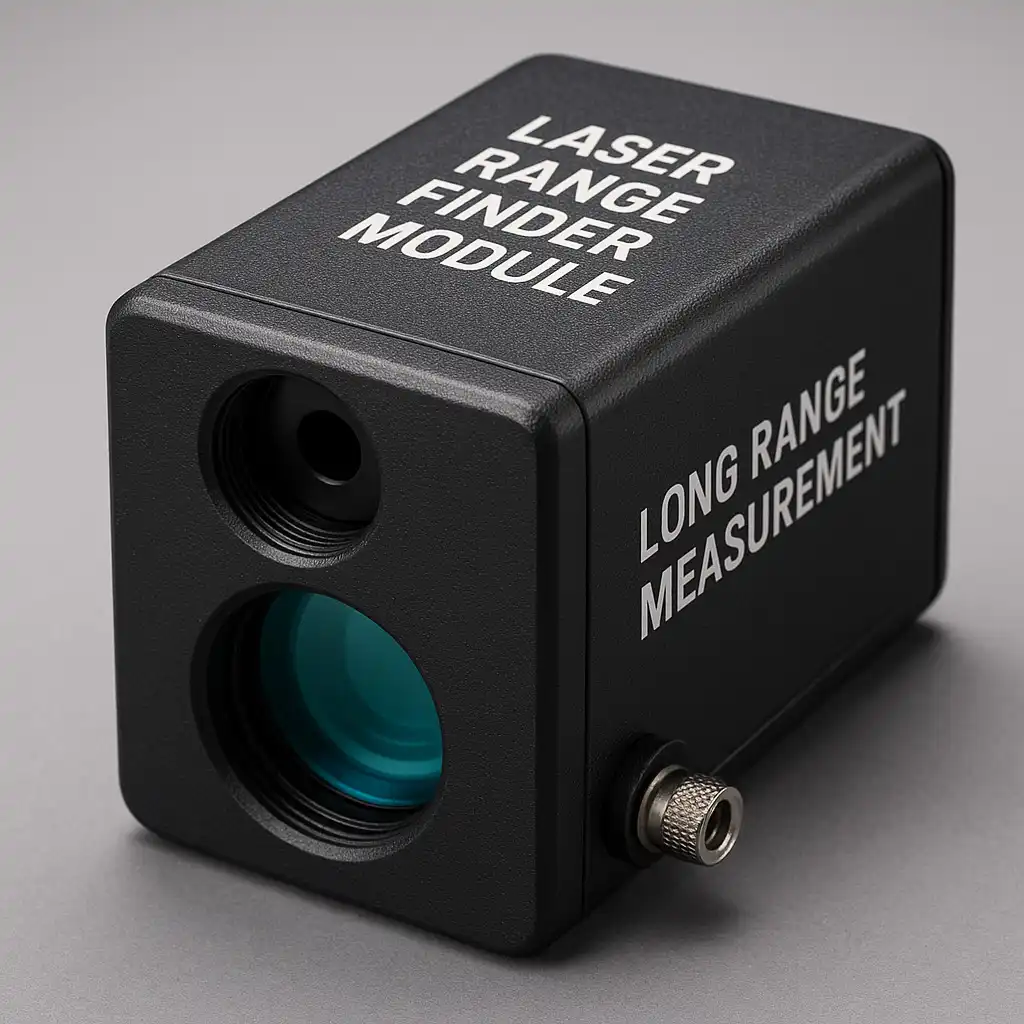

Long Range Laser Range Finder Modules represent cutting-edge technology in distance measurement applications. These sophisticated devices utilize laser beams to accurately determine distances to objects, making them invaluable across numerous industries including construction, forestry, military operations, surveying, and industrial automation. Understanding the maximum range capabilities of these modules is crucial for selecting the right equipment for specific applications. In this comprehensive guide, we'll explore the factors influencing the maximum range of Long Range Laser Range Finder Modules and address key considerations for users seeking optimal performance.

How Do Environmental Conditions Affect the Range of Long Range Laser Range Finder Modules?

Impact of Atmospheric Conditions on Laser Performance

Environmental factors significantly impact the performance of Long Range Laser Range Finder Modules in real-world applications. Atmospheric conditions such as fog, rain, snow, and dust particles can scatter or absorb laser signals, reducing the effective maximum range. When laser beams encounter water droplets or particulates in the air, the signal deteriorates through a process called attenuation. For instance, heavy fog can reduce the maximum range of a Long Range Laser Range Finder Module by up to 80% compared to clear conditions. Temperature gradients in the atmosphere can also cause beam deviation, while humidity levels affect the refractive index of air, potentially altering distance calculations. Professional-grade Long Range Laser Range Finder Modules often incorporate sophisticated algorithms to compensate for these environmental variations, but users should understand that manufacturer-stated maximum ranges typically assume ideal atmospheric conditions.

Target Surface Reflectivity Considerations

The reflective properties of target surfaces play a crucial role in determining the practical maximum range of Long Range Laser Range Finder Modules. Surfaces with high reflectivity, such as polished metal or retroreflective materials, return stronger signals to the receiver, enabling measurements at greater distances. Conversely, dark, rough, or highly absorbent surfaces reflect significantly less laser energy, substantially reducing the effective range. For example, while a Long Range Laser Range Finder Module might accurately measure distances up to 10,000 meters on highly reflective targets, the same module might only achieve 2,000-3,000 meters on low-reflectivity surfaces. Some advanced Long Range Laser Range Finder Modules feature automatic gain control to adapt to varying target reflectivity, but users should always consider target characteristics when evaluating range specifications. Manufacturers often publish range specifications for multiple reflectivity scenarios to help users make informed decisions about module capabilities in their specific applications.

Operational Angle and Target Geometry Effects

The angle of incidence between the laser beam and the target surface significantly affects the maximum range of Long Range Laser Range Finder Modules. Perpendicular measurements provide optimal signal return, while increasingly oblique angles reduce the strength of the reflected signal, thereby limiting effective range. Complex target geometries can create multiple reflection paths or signal scattering, introducing measurement inaccuracies or range limitations. When measuring to irregular surfaces with a Long Range Laser Range Finder Module, users often experience variations in maximum range depending on which portion of the surface is being targeted. Advanced modules incorporate sophisticated signal processing techniques to interpret complex return signatures, but all systems have inherent limitations when dealing with highly irregular targets. Understanding these geometric considerations is essential when deploying Long Range Laser Range Finder Modules in applications such as topographic mapping, forestry, or industrial settings where targets rarely present ideal flat surfaces perpendicular to the measurement direction.

What Technical Specifications Determine the Maximum Range of Long Range Laser Range Finder Modules?

Laser Power and Wavelength Characteristics

The laser source specifications fundamentally influence the maximum range capabilities of Long Range Laser Range Finder Modules. Higher-powered lasers can transmit energy over greater distances, enabling longer-range measurements, but must balance range performance against eye safety considerations and regulatory compliance. The wavelength of the laser also plays a crucial role, with certain wavelengths experiencing less atmospheric attenuation than others. For example, Long Range Laser Range Finder Modules operating at 1550nm wavelength typically achieve greater maximum ranges than those using 905nm lasers, as the longer wavelength experiences less scattering in atmospheric conditions. The beam divergence characteristics—how quickly the laser beam spreads out over distance—directly impact the energy density at the target and consequently the maximum range. Modules with tighter beam divergence maintain higher energy density over distance, enabling measurements at greater ranges. Professional-grade Long Range Laser Range Finder Modules often employ precision optics and collimation techniques to minimize beam divergence, maximizing their effective range in demanding applications.

Receiver Sensitivity and Signal Processing Capabilities

The sensitivity of the receiving optics and electronics fundamentally limits the maximum range of Long Range Laser Range Finder Modules. Advanced modules incorporate high-sensitivity avalanche photodiodes or photomultiplier tubes capable of detecting extremely faint return signals, significantly extending the maximum measurement range. Signal-to-noise ratio (SNR) optimization through sophisticated filtering and amplification circuitry allows Long Range Laser Range Finder Modules to extract valid measurements from weak return signals that would otherwise be lost in background noise. Signal processing algorithms, including waveform analysis, pulse integration, and statistical filtering, further enhance the effective maximum range by distinguishing genuine target returns from false positives. For instance, some premium Long Range Laser Range Finder Modules employ multiple-return analysis to differentiate between intermediate objects (like vegetation) and the intended target, maintaining accurate measurements at extended ranges even in complex environments. Manufacturers continuously advance receiver technology to push the boundaries of maximum range capabilities while maintaining measurement accuracy and reliability.

Timing Resolution and Distance Calculation Methods

The precision of time measurement systems directly impacts both the maximum range and accuracy of Long Range Laser Range Finder Modules. Time-of-flight measurement resolution determines how precisely the module can calculate distances based on the laser pulse's round-trip travel time. High-frequency timing circuits capable of picosecond-level resolution allow for more accurate measurements at extreme distances. Phase-shift measurement methods, commonly used in some Long Range Laser Range Finder Modules, compare the phase difference between transmitted and received signals to determine distance, offering advantages in certain applications but with different maximum range limitations than direct time-of-flight methods. Multi-pulse averaging techniques improve measurement reliability at extended ranges by combining data from multiple laser pulses, reducing the impact of signal variations and environmental interference. The processing capabilities of the module's microcontroller influence maximum range by determining how effectively the system can analyze complex return signals, apply environmental compensations, and filter noise. Leading Long Range Laser Range Finder Modules often incorporate field-programmable gate arrays (FPGAs) or dedicated signal processors to maximize range capabilities through advanced real-time signal analysis.

How Do Different Applications Utilize the Maximum Range of Long Range Laser Range Finder Modules?

Military and Defense Range Finding Applications

Military organizations worldwide deploy Long Range Laser Range Finder Modules in numerous tactical applications where precise distance measurement at extreme ranges provides critical strategic advantages. These specialized modules, often ruggedized for battlefield conditions, can determine target distances with sub-meter accuracy at ranges exceeding 25 kilometers in optimal conditions. Sniper teams rely on Long Range Laser Range Finder Modules to calculate bullet trajectory compensation for factors like distance, elevation, and windage. Artillery units employ these modules for fire control systems, while reconnaissance teams use them for standoff target identification and position reporting. Military-grade Long Range Laser Range Finder Modules typically incorporate advanced features like multi-target discrimination, atmospheric compensation algorithms, and encrypted communications to prevent detection or signal interception. These modules often operate at eye-safe wavelengths (typically 1550nm) while maintaining exceptional range capabilities through specialized optics and signal processing. The extreme reliability requirements for military applications drive continuous innovation in Long Range Laser Range Finder Module technology, with developments frequently transferring to civilian and industrial applications after military deployment.

Surveying and Geospatial Mapping Requirements

Professional surveying and mapping operations leverage Long Range Laser Range Finder Modules to capture precise geographic data efficiently across vast areas. In topographic surveying, these modules enable teams to measure distances to inaccessible features like cliff faces, ravines, or structures across bodies of water, with some advanced systems achieving ranges up to 12 kilometers while maintaining centimeter-level accuracy. LiDAR (Light Detection and Ranging) systems, which incorporate multiple Long Range Laser Range Finder Modules in scanning configurations, create detailed three-dimensional terrain models by capturing millions of precise distance measurements. The maximum range capabilities of these modules directly influence survey productivity and feasibility, particularly in challenging environments like dense forests, mountainous regions, or urban canyons. Advanced Long Range Laser Range Finder Modules used in surveying applications often integrate with GNSS (Global Navigation Satellite System) receivers and inertial measurement units to provide georeferenced distance measurements, creating comprehensive spatial datasets. The non-contact measurement capability of these modules enables surveys of hazardous or environmentally sensitive areas where traditional methods would be impractical or destructive.

Industrial Automation and Process Control Integration

Manufacturing facilities and industrial operations increasingly implement Long Range Laser Range Finder Modules in automation systems where non-contact distance measurement enhances efficiency and safety. In large-scale manufacturing environments, these modules monitor positions of moving equipment, verify component placement, and ensure proper machine positioning across factory floors spanning hundreds of meters. Bulk material handling operations utilize Long Range Laser Range Finder Modules to measure inventory levels in silos, stockpiles, or storage tanks, with specialized modules capable of accurate measurements through dust, steam, or other process-generated atmospheric challenges. The maximum range capabilities of industrial Long Range Laser Range Finder Modules must balance distance performance with update rate requirements, as many automation applications require continuous high-frequency measurements. System integrators select modules with appropriate maximum range specifications to ensure reliable operation with sufficient measurement margin under all anticipated operating conditions. Advanced industrial Long Range Laser Range Finder Modules often feature industrial network interfaces like Ethernet/IP, Profinet, or Modbus TCP, enabling seamless integration with existing control systems while providing continuous distance data over their entire operating range.

Conclusion

The maximum range of Long Range Laser Range Finder Modules varies significantly based on environmental conditions, target characteristics, and technical specifications. While some advanced modules can measure distances exceeding 25 kilometers in optimal conditions, practical ranges depend on application-specific requirements and operating environments. Understanding these factors enables users to select appropriate modules for their unique needs and maximize measurement performance. As technology advances, we can expect continued improvements in range capabilities while maintaining accuracy and reliability. As a leading manufacturer in the laser optoelectronics industry, Hainan Eyoung Technology Co., Ltd. excels in laser distance measurement solutions. Our strong R&D, production, and inspection capabilities, along with OEM/ODM/OBM services, ensure customer satisfaction and product excellence. Contact evelyn@eyoungtec.com for more information.
