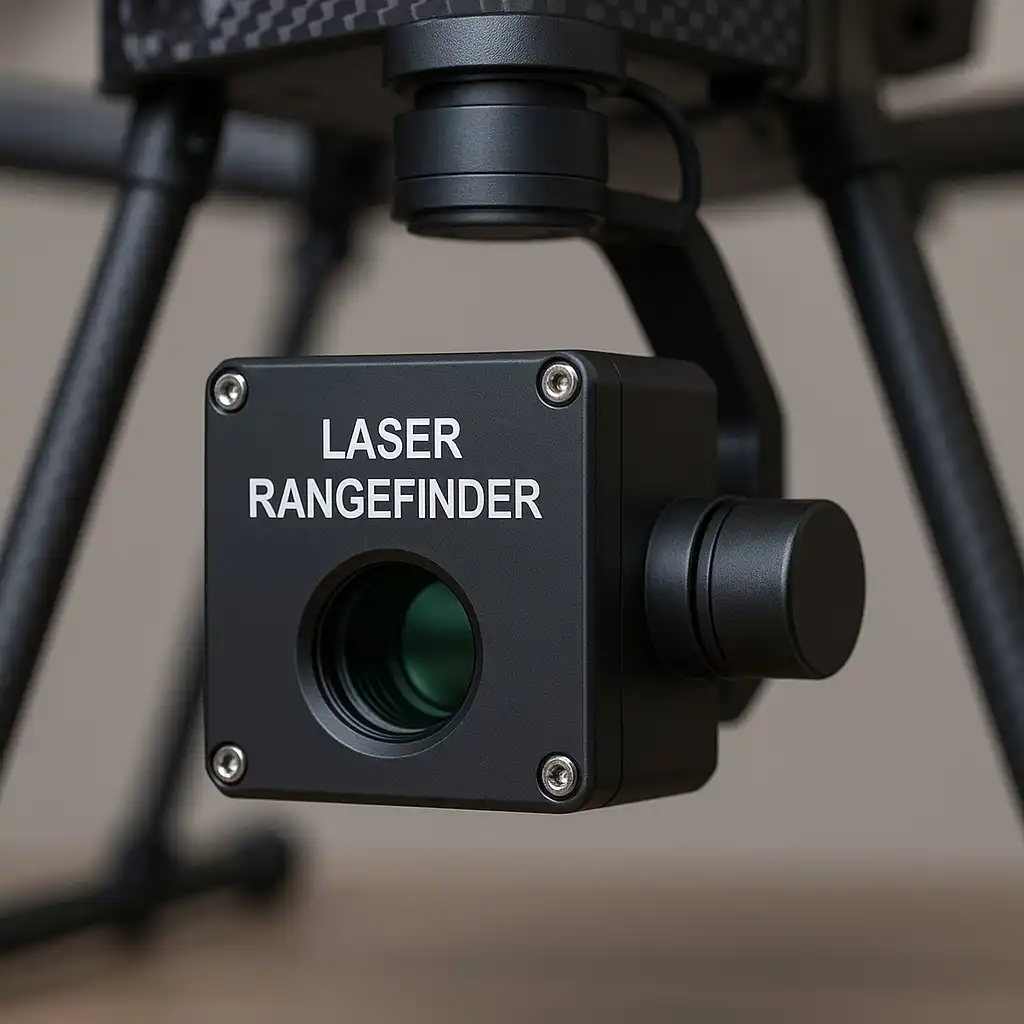

In the rapidly evolving field of unmanned aerial vehicles (UAVs), precision navigation remains a critical challenge. Laser rangefinder modules have emerged as a game-changing technology that significantly enhances UAV navigation(Laser Rangefinder Module For UAV) accuracy across various applications. These compact, lightweight devices measure distances with remarkable precision by emitting laser beams and calculating the time taken for the reflected light to return. By providing real-time, highly accurate distance measurements, laser rangefinder modules enable UAVs to navigate complex environments with unprecedented precision, avoid obstacles effectively, and perform precise altitude control even in challenging conditions where traditional navigation systems may falter.

How does a laser rangefinder module improve obstacle avoidance in UAV operations?

Enhanced Detection Capabilities in Complex Environments

Laser rangefinder modules for UAVs offer superior detection capabilities in challenging environments where traditional sensors might struggle. These sophisticated modules emit precise laser beams that can accurately measure distances to objects regardless of lighting conditions or surface textures. Unlike camera-based systems that depend heavily on ambient light or ultrasonic sensors with limited range, laser range finder modules maintain consistent performance in varying environmental conditions. When integrated into UAV navigation systems, they provide reliable distance measurements to potential obstacles with centimeter-level accuracy. This precision is particularly valuable in complex urban environments, dense forests, or indoor settings where obstacles may be numerous and closely spaced. The long range rangefinder module variants can detect obstacles at significant distances, giving the UAV ample time to adjust its flight path accordingly. This enhanced detection capability dramatically reduces collision risks while allowing UAVs to operate safely in previously challenging environments.

Real-Time Processing for Instantaneous Response

The effectiveness of obstacle avoidance in UAV operations depends not only on detection accuracy but also on response time. Laser ranging modules excel in this aspect by offering high-frequency measurements and minimal latency. Modern laser rangefinder modules for UAVs can perform hundreds of measurements per second, creating a continuous stream of distance data that enables real-time decision-making. When an obstacle is detected, the UAV's flight controller can instantly calculate an alternative path or initiate evasive maneuvers. This real-time processing capability is crucial for high-speed UAV operations where even milliseconds of delay could result in a collision. The laser rangefinder module's ability to rapidly assess distances to multiple points allows the UAV to build a detailed spatial awareness of its surroundings, facilitating smooth navigation through dynamic environments. By continuously updating distance information, these modules enable UAVs to respond immediately to both stationary and moving obstacles, significantly enhancing operational safety and mission success rates.

Multi-Directional Sensing for Comprehensive Protection

Advanced laser rangefinder modules for UAVs offer multi-directional sensing capabilities that provide comprehensive obstacle detection coverage. While basic modules might only measure distance in a single direction, sophisticated systems incorporate multiple laser ranging modules oriented in different directions or use rotating mechanisms to scan the surrounding environment. This multi-directional approach creates a protective "bubble" around the UAV, enabling it to detect obstacles from all angles. Some advanced systems combine several laser rangefinder modules with complementary sensors to create detailed 3D maps of the surrounding environment. This comprehensive awareness allows UAVs to navigate through tight spaces, such as narrow corridors or dense vegetation, with minimal risk of collision. The ability to detect obstacles in all directions is particularly valuable for autonomous operations where human operators cannot provide real-time guidance. By implementing multiple laser range finder modules strategically positioned across the UAV frame, operators can ensure maximum coverage and protection during complex missions.

​​​​​​​

What role does laser rangefinder technology play in precise altitude control?

Absolute Altitude Measurement for Ground Reference

Laser rangefinder modules provide UAVs with absolute altitude measurements that are critical for precise ground referencing and stable flight operations. Unlike barometric sensors that measure relative pressure changes or GPS systems with vertical accuracy limitations, laser ranging modules directly measure the actual distance between the UAV and the ground surface. This capability is particularly valuable when flying over varied terrain where ground elevation changes rapidly. The laser rangefinder module for UAV applications emits a downward-facing beam that accurately determines the vehicle's height above ground level (AGL) with precision typically within a few centimeters. This absolute measurement enables UAVs to maintain consistent altitude regardless of topographical variations, which is essential for applications like terrain mapping, agricultural monitoring, and infrastructure inspection. The laser range finder module's ability to provide reliable ground referencing also enhances safety during low-altitude operations, ensuring the UAV maintains appropriate clearance from the ground while maximizing the effectiveness of sensors and cameras mounted on the vehicle.

Terrain Following and Contour Navigation Capabilities

One of the most significant advantages of integrating laser rangefinder modules into UAV navigation systems is the ability to enable advanced terrain following and contour navigation. These capabilities allow UAVs to automatically adjust their flight altitude to maintain a consistent height above varying terrain, which is crucial for many specialized applications. When equipped with a high-performance laser ranging module, UAVs can detect changes in ground elevation in real-time and adjust their altitude accordingly. This ensures that the vehicle maintains an optimal distance from the surface regardless of terrain variations. For applications like LiDAR mapping, geological surveys, or precision agriculture, this capability ensures consistent data quality across the entire survey area. Long range rangefinder modules extend this capability to challenging terrains with steep slopes or sudden elevation changes. The terrain following functionality also enhances flight safety by preventing collisions with rising terrain features, even in areas where detailed topographical maps might not be available. By continuously measuring the distance to the ground, the UAV can navigate safely while maintaining the ideal altitude for its specific mission parameters.

Precision Landing and Hovering Operations

Precise vertical positioning enabled by laser rangefinder modules dramatically improves UAV landing and hovering operations. The final approach and landing phase of UAV flight is often the most critical and risk-prone, particularly in confined spaces or on moving platforms. Laser rangefinder technology provides the centimeter-level accuracy needed to execute these maneuvers safely and consistently. During the landing sequence, the laser ranging module continuously measures the diminishing distance to the landing surface, allowing the flight controller to adjust descent rate with exceptional precision. This capability is essential for applications requiring landings on small platforms, moving vehicles, or in challenging environments with limited space. Similarly, for hovering operations, the laser rangefinder module for UAV enables the vehicle to maintain a precise altitude without drift, which is crucial for inspection tasks, photography, or monitoring applications that require stable positioning. The module's high update rate ensures that any vertical movement is detected and corrected immediately, resulting in remarkably stable hover performance even in windy conditions. This precision extends the operational capabilities of UAVs into previously challenging scenarios, such as indoor inspections or close proximity operations around critical infrastructure.

How can laser rangefinder modules enhance mapping and surveying accuracy?

High-Precision Distance Measurement for 3D Modeling

Laser rangefinder modules have revolutionized UAV-based mapping and surveying by providing exceptionally accurate distance measurements essential for high-quality 3D modeling. When integrated with UAV platforms, these modules deliver centimeter-level distance precision that significantly enhances the spatial accuracy of generated models. The laser rangefinder module for UAV applications works by emitting laser pulses and measuring the precise time taken for these pulses to reflect off surfaces and return to the sensor. This time-of-flight principle allows for incredibly accurate distance calculations regardless of lighting conditions or surface textures. When combined with the UAV's position data from GPS and inertial measurement units, these precise distance measurements enable the creation of highly detailed digital elevation models (DEMs), point clouds, and 3D reconstructions. The long range rangefinder module variants can extend this capability to larger areas and taller structures, making them ideal for applications like topographic mapping, urban modeling, and structural analysis. The resulting 3D models serve as valuable digital twins of the physical environment, supporting applications in construction, urban planning, conservation, and numerous other fields that depend on accurate spatial data.

Improved Data Registration and Georeferencing

One of the most significant challenges in UAV photogrammetry and remote sensing is accurate data registration and georeferencing. Laser rangefinder modules address this challenge by providing precise distance measurements that serve as control points for aligning and positioning captured data in geographic space. When a UAV equipped with a laser ranging module conducts a survey, each distance measurement is associated with specific coordinates based on the vehicle's position. These accurately measured points create a robust spatial framework that significantly improves the alignment of aerial imagery, LiDAR data, or multispectral scans. By providing absolute distance measurements rather than relative ones, the laser rangefinder module helps minimize cumulative errors that often occur in traditional photogrammetric processes. This capability is particularly valuable when mapping areas with limited visual features or when working without ground control points. The improved data registration translates to more accurate orthomosaics, contour maps, and volumetric calculations. For applications such as mining surveys, construction monitoring, or environmental assessments, this enhanced accuracy can lead to better decision-making and reduced operational costs by minimizing the need for repeat surveys or field verification.

Enhanced Feature Detection and Edge Definition

Laser rangefinder modules provide UAVs with superior capability for detecting and defining features with distinct elevation changes, significantly improving the quality of survey products. The precise distance measurements generated by laser range finder modules excel at identifying subtle variations in surface topography that might be missed by photogrammetric methods alone, especially in areas with uniform texture or challenging lighting conditions. This enhanced feature detection is particularly valuable for applications requiring detailed mapping of edges, boundaries, or structural elements. When mapping infrastructure like roads, railways, or utility corridors, the laser rangefinder module for UAV can clearly delineate edges and elevation changes with exceptional accuracy. Similarly, in environmental applications, these modules can detect subtle topographical features like drainage patterns, erosion channels, or vegetation boundaries that might be critical for analysis. The module's ability to provide clean, noise-free distance measurements results in sharper edge definition in the final mapping products, reducing the ambiguity often associated with image-based reconstruction methods. This clarity of feature definition supports more precise measurements and analysis, making laser rangefinder-equipped UAVs indispensable tools for professionals requiring the highest level of detail and accuracy in their spatial data.

Conclusion

Laser rangefinder modules have become essential components for enhancing UAV (Laser Rangefinder Module For UAV)navigation accuracy through precise distance measurement, obstacle detection, and altitude control. These versatile devices enable advanced capabilities including terrain following, precise landing, and high-quality 3D mapping that expand UAV applications across numerous industries. As demand for precision UAV operations grows, laser rangefinder technology continues to evolve with improvements in range, accuracy, and integration.

At Hainan Eyoung Technology Co., Ltd., we specialize in laser distance measurement within the laser optoelectronics industry. With a dedicated R&D team, our own factory, and a solid customer network, we offer quick, reliable service, including OEM/ODM/OBM solutions. Trust us for quality products and excellent customer service. Reach us at evelyn@eyoungtec.com.
