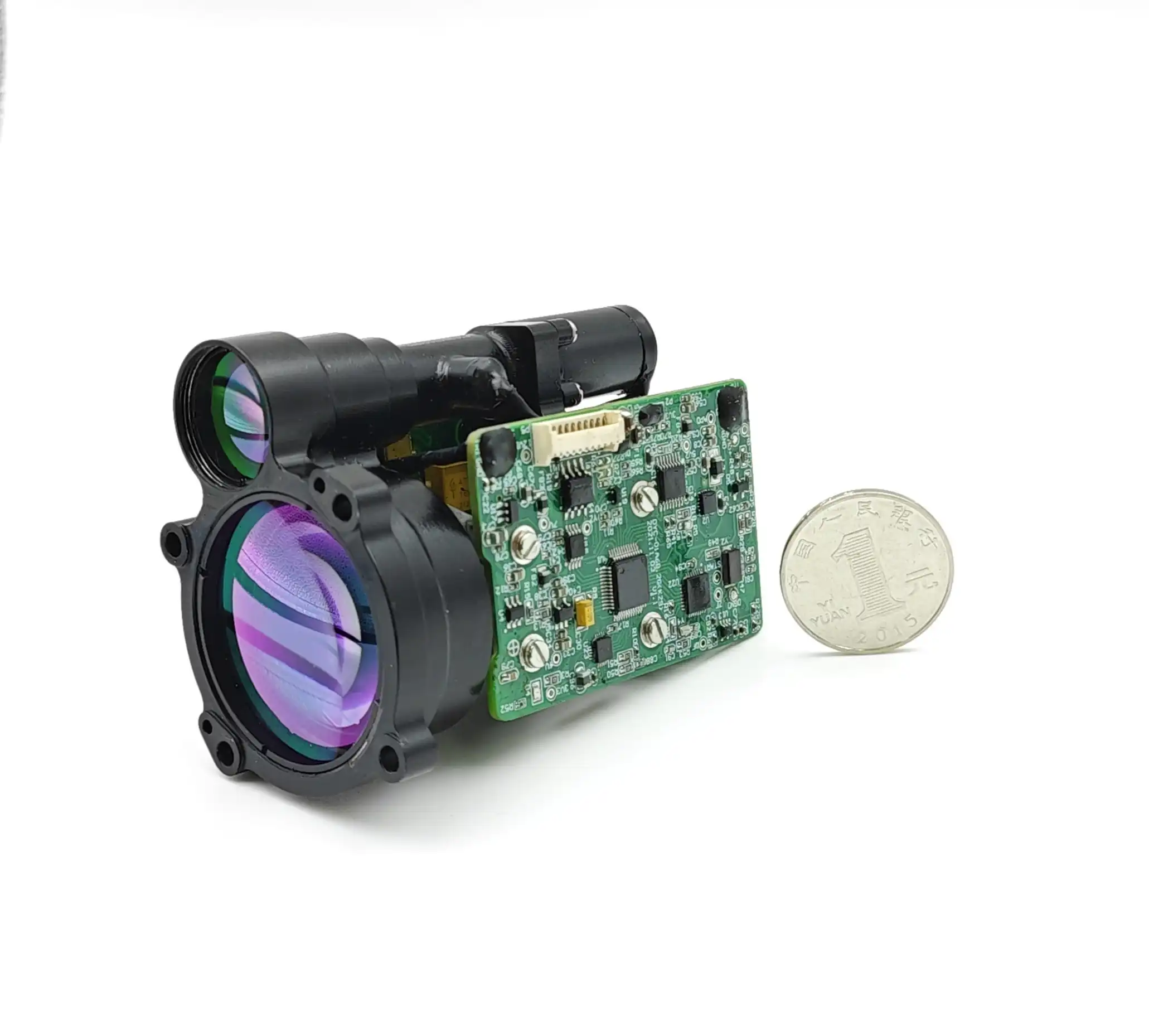

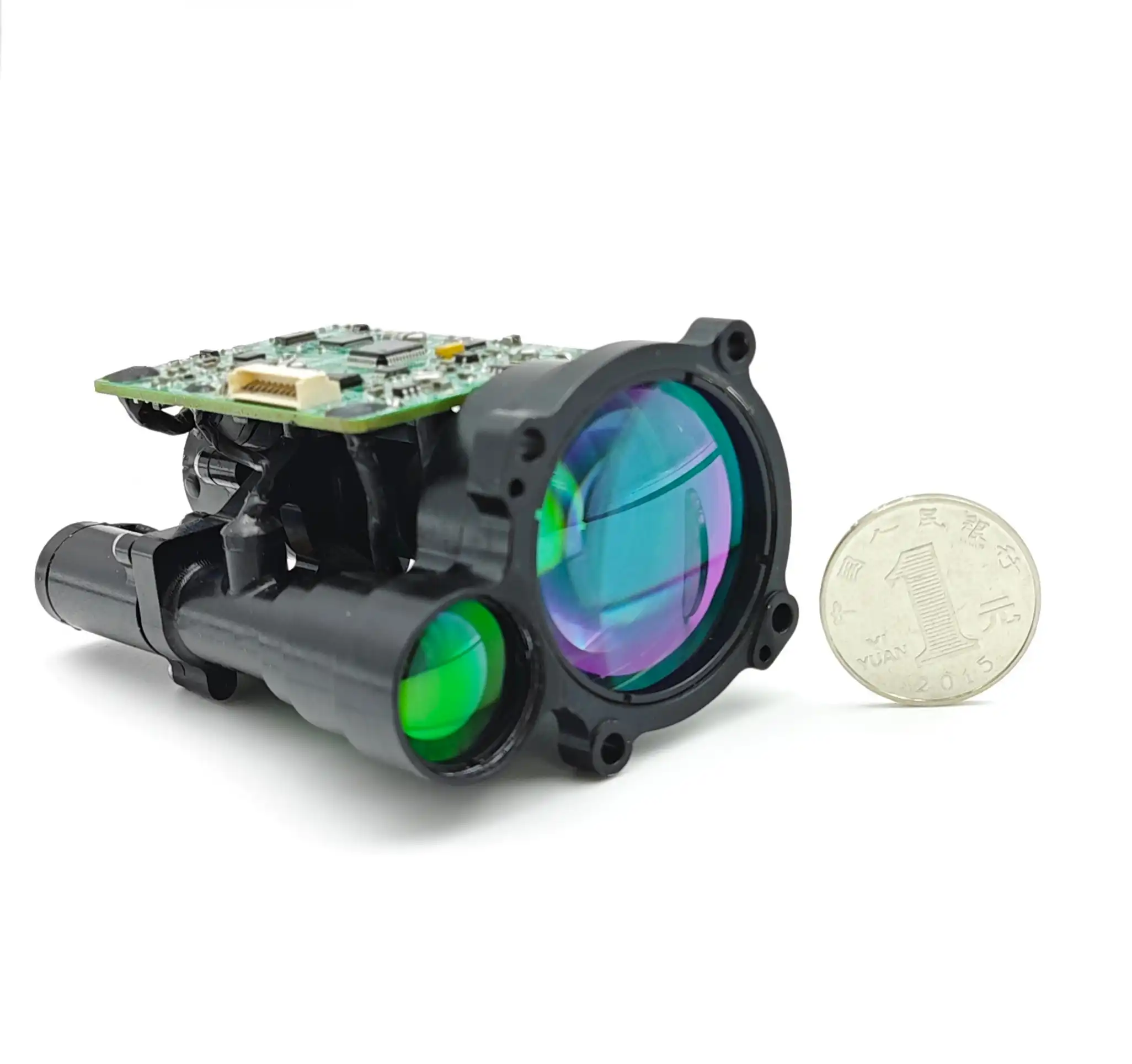

Laser Rangefinder Module For UAV
Laser type:erbium glass; Laser wavelength:1535±10nm(eye safety);
Distance measurement range:20～7000m;
Ranging frequency (Hz)：Single time、1、5
Ranging accuracy:±1m;
Ranging resolution:0.1m;
Operating voltage:10V～14V;
Power consumption:standby power consumption≤0.5W, power off to achieve zero standby power consumption;
Volume:≤80mm×58.5mm×45mm;
Light weight:≤125g.
Introduction
Our Laser Rangefinder Module for UAV (Unmanned Aerial Vehicle) epitomizes meticulous design aimed at enhancing the performance and precision of aerial platforms. It is a highly reliable and high-performance rangefinder that our company specially developed for harsh working conditions. With the working waveband of 1535nm, this product is in the eye-safe wave band.By integrating cutting-edge technology and robust construction, this module excels in delivering unparalleled distance measurement capabilities, thereby establishing itself as an indispensable tool for various UAV applications.
Specification
|
Items |
Index |
|
|
Laser wavelength |
1535nm |
|
|
|
Large target |
10000 |
|
|
Vehicle（2.3m×4.6m） |
7000 |
|
|
Human（0.5m×1.7m） |
4800 |
|
Minimum range (m) |
20 |
|
|
Ranging accuracy (m) |
±1 |
|
|
Size (L×W×H) (mm) |
≤80×58.5×45 |
|
|
Weight (g) |
≤125 |
|
|
Ranging frequency (Hz) |
Single time、1、5 |
|
|
Precision ratio |
≥98% |
|
|
False alarm rate |
≤1% |
|
|
Multiple target detection (pc) |
2 |
|
|
Communication port |
RS422 |
|
|
Supply voltage (V) |
6～9 |
|
|
Standby power consumption (W) |
≤0.5, power off to achieve zero standby power consumption |
|
|
Operating temperature |
-40～+60 |
|
Technical Features
Our Laser Rangefinder Module for UAV is equipped with advanced features to meet the demanding requirements of aerial applications. With high-precision laser technology, lightweight design, and versatile interface options, it offers seamless integration and reliable performance in UAV platforms.The product has the following advantages:
1. Integrated design, strong shock resistance capacity, high reliability and stable performance;
2. Ultra-high sensitivity detection technology adopted, small volume, light weight, and long measurement range.
Working Principle
The module operates on the principle of time-of-flight (TOF) measurement using laser pulses. By emitting a laser beam towards the target and detecting the reflected signal, it calculates the distance based on the time taken for the round trip. This precise measurement ensures accurate positioning and navigation for UAVs during flight.
Application Fields
From aerial mapping and surveying to search and rescue operations, our Laser Rangefinder Module for UAV finds diverse applications. It is essential for precise altitude control, obstacle detection, and terrain mapping, enabling UAVs to navigate safely and effectively in various environments.It can also be used in our handheld photoelectric devices, drone installations, small pods applications, and other scenarios with ranging requirements.
Measurement Precautions
Cleaning and keeping the lens clear of debris and pollutants is crucial for maintaining optimal performance and avoiding interference with laser signals. Maintaining a clear lens extends the equipment's lifespan and provides dependable transmission and precise reception of laser signals, in addition to providing protection against possible disturbances. To maintain the integrity and functionality of the lens in a variety of settings and circumstances where laser technology is applied, frequent cleanings and inspections are advised.
Packaging and Delivery
Our Drone Laser Rangefinder Modules are shock-proof, crash-proof and fall-proof in sealed packaging to ensure their integrity and safety during transportation. International transportation is generally air or express, can be flexible according to customer requirements, and ultimately ensure the complete delivery of products to customers.
