The Use of Laser Rangefinder in Laser Target Designator

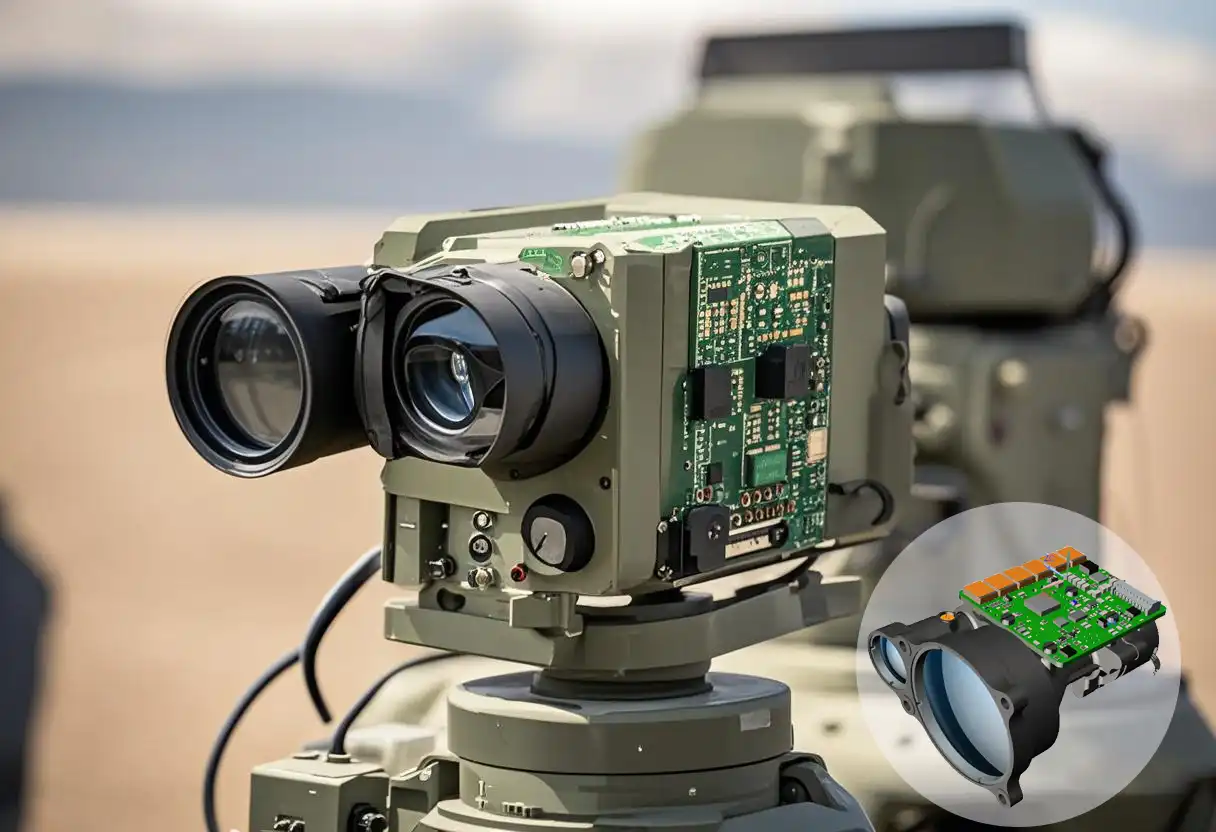

What is a laser target designator?
A Laser Target Designator, also called LTD for short, is a device that emits a focused beam of laser light to precisely mark or “designate” a specific target for guidance system, typically in military applications. The laser beam creates a coded signal that can be detected by laser-guided munitions, such as missiles or bombs, enabling them to home in on the designated target with high accuracy. This technology is widely used in modern warfare to minimize collateral damage and improve the effectiveness of precision strikes. The designator can be operated by ground personnel, mounted on vehicles, or integrated into aircraft, making it a versatile tool for targeting in various combat scenarios.
How is LRF module used in laser target designator?
A laser rangefinder module is a critical component integrated into a laser target designator(LTD) system. It is used to measure the distance between the designator and the target. Here’s how it works and its role in the targeting process:
1.Distance Measurement
The laser rangefinder emits a laser pulse toward the target. The pulse reflects off the target and returns to the LRF. By calculating the time it takes for the pulse to travel to the target and back, the system determines the exact distance to the target.
2.Target Accuracy
Knowing the precise distance to the target is essential for accurate targeting. This information ensures that the laser beam from the designator is correctly aligned and focused on the intended target, even at long ranges.
3.Coordination with Guidance Systems
The rangefinder’s distance data is often combined with other target information, such as GPS coordinates and azimuth angles, to provide a comprehensive target location. This data is then used by laser-guided munitions to navigate and strike the target with high precision.
In summary, the laser range finder module in a laser target designator ensure precise distance measurement, which is crucial for effective target designation and successful deployment of laser-guided munitions.
