20KM Ultra Long Distance LRF Module
Medium size design;
1535nm eye-safe laser;
Multiple 2 targets detection;
Optical lens is water-proof;
Typical accuracy :±3m
20KM Ultra Long Distance LRF Module Introduction
Introducing the 20KM Ultra Long Distance LRF Module by Hainan Yiyang Technology Co., Ltd., engineered to offer the highest level of accuracy and range in the most demanding applications. This medium-sized module delivers a remarkable 20 km measurement range, making it ideal for maritime electro-optical surveillance, fire control systems, and other high-precision long-range applications. Unlike smaller, lightweight modules in the market, this module is built for exceptional range and performance, even in extreme conditions.
Designed to withstand harsh environments, this product integrates advanced features like small beam divergence and waterproof lens design, ensuring optimal performance in naval and outdoor operations. Whether you're working in aerospace, defense, or maritime sectors, this module delivers the accuracy and durability you need.
Product Advantages
Impressive Range Performance: With a maximum range capability of up to 20 kilometers on a 2.3m×4.6m target, the module excels in long-range measurements, providing reliable performance even in challenging environments.
Compact Yet Powerful: Despite its large aperture and high-range capabilities, this module has been designed with a medium size (134mm × 99mm × 77mm) and a weight of just 820g, making it suitable for integration into various payload systems.
Small Beam Divergence: The 0.3mrad beam divergence allows for an intense and stable laser emission, enhancing the module's accuracy over long distances.
Multiple Target Detection: Capable of detecting and measuring the distance of up to two targets simultaneously within the same line of sight, the module improves operational efficiency, especially in dynamic environments.
Waterproof Optical Lens: The waterproof lens design ensures that the 20KM Ultra Long Distance LRF Module can be used in maritime environments, making it the ideal choice for naval electro-optical (EO) systems.
Temperature Sensing: The module is equipped with ambient temperature detection, providing real-time feedback on operating conditions to ensure that the system is functioning optimally.
Technical Features
|
Item |
Parameter |
|
Laser wavelength |
1535nm±5nm |
|
Max. range capability |
≥20km (to 2.3m×4.6m vehicle or equivalent target, visibility ≥30km, relative humidity ≤60%) |
|
Min. range capability |
≤100m |
|
Ranging accuracy |
±3m |
|
Beam divergence |
≤0.3mrad |
|
Range resolution |
≤40m |
|
Accuracy rate |
≥98% |
|
Ranging frequency |
Single time, 1Hz, 5Hz |
|
Dimension |
≤134mm×99mm×77mm (L×W×H) |
|
Weight |
≤820g |
|
Communication type |
RS422 |
|
Power supply |
DC 28V±6V |
|
Average power consumption |
≤10W@1Hz |
|
Working temperature |
-40℃～+60℃ |
|
Storage temperature |
-45℃～+65℃ |
Quality Control and Safety Standards
At Hainan Yiyang Technology Co., Ltd., we pride ourselves on delivering reliable and robust products. The 20KM Ultra Long Distance LRF Module is rigorously tested to meet high-quality standards, ensuring durability and high performance in demanding conditions.
Key quality and safety features include:
Eye-Safe Laser: The laser used in this module is eye-safe, ensuring operational safety for personnel.
Environmental Durability: Built to withstand extreme temperatures ranging from -45°C to +65°C and high humidity environments (≤60%), this module is designed for reliable performance in diverse conditions.
Waterproof Design: The waterproof optical lens ensures optimal performance in harsh weather conditions and underwater environments, crucial for naval and maritime applications.
Anti-Static Protection: To protect sensitive components from electrical surges, the module is equipped with anti-static technology, enhancing its longevity and reliability.

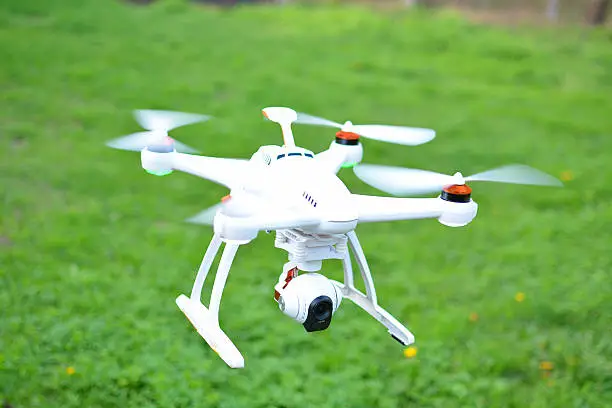

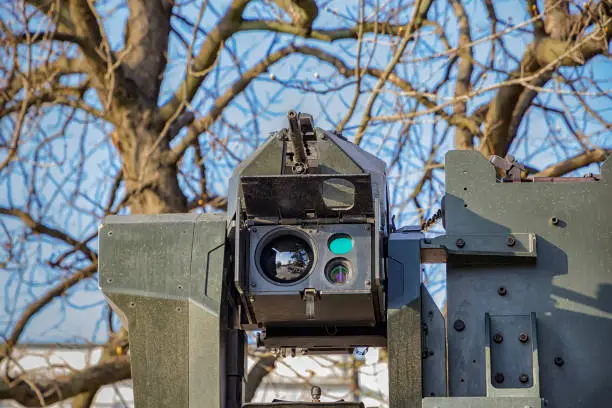

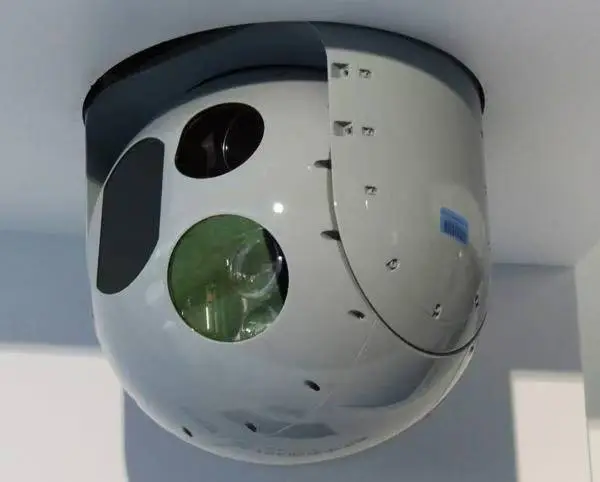

Application Scenarios:
FAQ
Q1: What is the maximum range of this product?
A: The module can measure distances of up to 20 kilometers on a standard 2.3m×4.6m vehicle or equivalent target, providing excellent performance even in low-visibility conditions.
Q2: Can the module detect multiple targets at once?
A: Yes, this module can simultaneously detect and measure distances for up to two targets within the same line of sight.
Q3: How does the waterproof lens benefit the module?
A: The waterproof lens ensures that the module operates effectively in maritime environments, making it suitable for naval electro-optical systems and other water-based applications.
Q4: What power supply does the module require?
A: The module operates on a DC 28V ±6V power supply and has an average power consumption of ≤10W when operating at 1Hz.
Q5: Is the module safe to use in harsh environments?
A: Yes, the module is designed to work in extreme temperature conditions, ranging from -40°C to +60°C. It also features anti-static protection and is built to endure challenging operational environments.
