What are the Key Features of an Eye-safe Range Finder Module?
Eye-safe range finder modules represent a significant advancement in laser measurement technology, offering precise distance calculation while maintaining safety for human vision. These sophisticated devices utilize specific wavelengths of light that minimize potential damage to the retina, making them ideal for both industrial and consumer applications. As distance measurement becomes increasingly important across multiple industries, understanding the key features of eye-safe range finder modules is essential for professionals seeking reliable and safe measurement solutions.
How Does an Eye-safe Range Finder Module Protect Vision?
Wavelength Selection for Retinal Safety

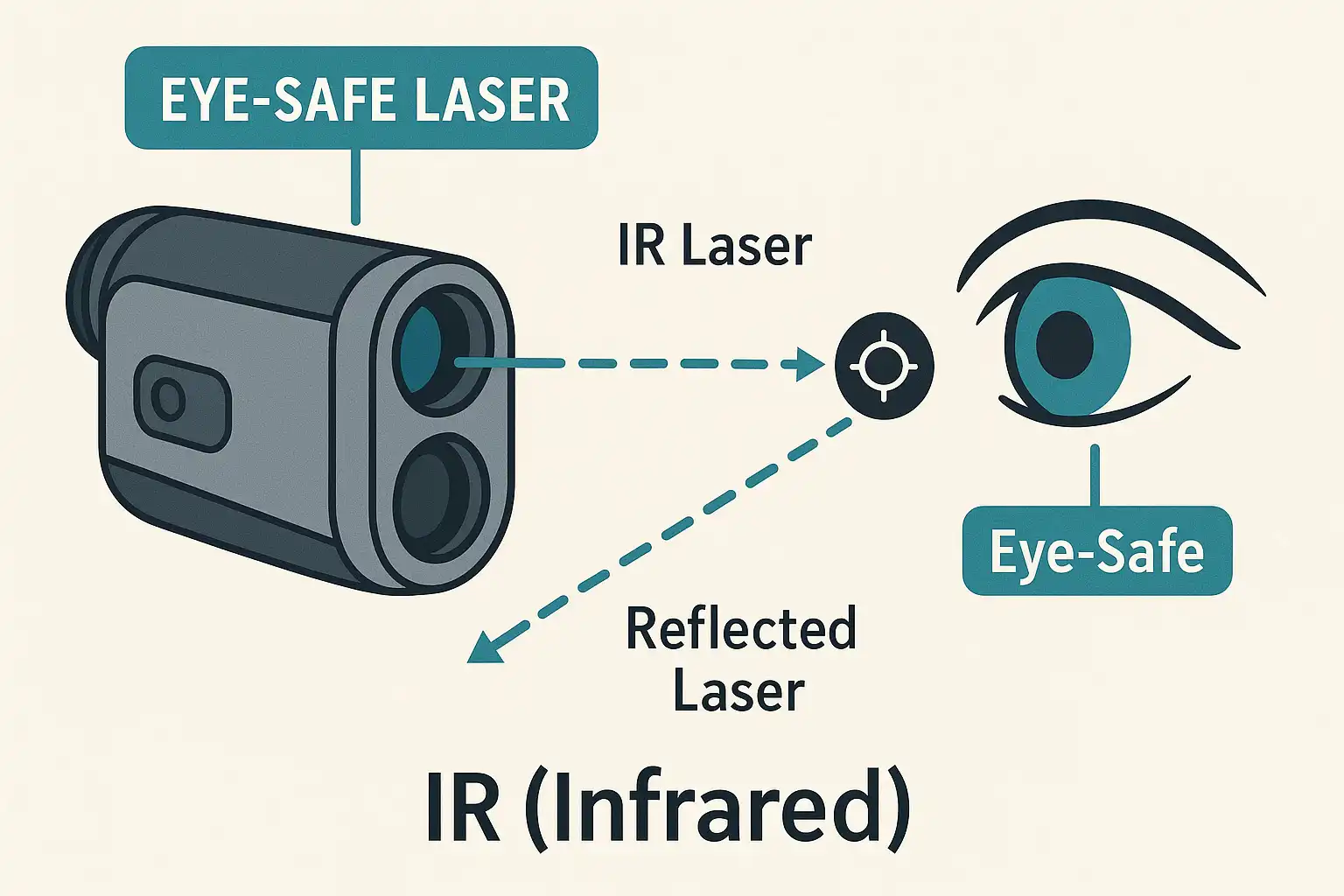

Eye-safe range finder modules primarily protect vision through careful wavelength selection. Most eye-safe devices operate at wavelengths of 1550nm, which falls within Class 1 laser safety standards. At this wavelength, the laser energy is absorbed by the cornea and lens before reaching the sensitive retina, significantly reducing the risk of eye damage. Traditional range finders often use wavelengths between 600-900nm, which can penetrate to the retina and potentially cause damage. The Eye-safe Range Finder Module's longer wavelength technology provides an essential safety feature while still delivering accurate measurement capabilities across various distances. The physical properties of these longer wavelengths mean they dissipate more quickly in eye tissue, reducing potential harm even during accidental exposure.
Power Regulation and Safety Features
Beyond wavelength selection, Eye-safe Range Finder Modules incorporate sophisticated power regulation systems that limit the output energy to levels considered safe for incidental exposure. These modules typically operate at power levels below 1mW, adhering to international safety standards while maintaining effective range capabilities. Many modern Eye-safe Range Finder Modules include additional safety features such as automatic power-down when not in use, beam divergence control to prevent concentrated energy, and fail-safe mechanisms that prevent the device from exceeding safe power levels even in the case of component failure. These integrated safety measures ensure that the module remains eye-safe throughout its operational lifetime, even as components age or under varying environmental conditions.
Certification and Compliance Standards
All reputable Eye-safe Range Finder Modules undergo rigorous testing and certification to ensure they meet international safety standards. These certifications typically include IEC 60825-1 laser safety classifications, with eye-safe modules generally falling under Class 1 or Class 1M. The certification process examines not only the laser wavelength but also beam characteristics, power outputs, pulse rates, and safety systems. When selecting an Eye-safe Range Finder Module, verification of these certifications is crucial for ensuring genuine eye safety. Many manufacturers provide detailed safety documentation that outlines specific testing protocols their modules have undergone, maximum permissible exposure limits, and recommended usage guidelines. This transparency allows users to make informed decisions about the appropriate Eye-safe Range Finder Module for their specific application requirements.
What Performance Characteristics Define a Quality Eye-safe Range Finder Module?
Measurement Accuracy and Precision
The primary function of any Eye-safe Range Finder Module is distance measurement, making accuracy and precision paramount quality indicators. High-quality modules typically offer accuracy rates of ±1mm at distances up to 100 meters, with some advanced models achieving even tighter tolerances. This precision relies on sophisticated time-of-flight calculations, where the module measures the time taken for the laser pulse to travel to the target and return. The Eye-safe Range Finder Module's internal processing algorithms compensate for environmental factors that could affect measurement, such as temperature fluctuations, atmospheric conditions, and target surface characteristics. Advanced modules incorporate multiple measurement samples with statistical filtering to eliminate outlier readings, ensuring consistent results even in challenging conditions. This combination of hardware precision and algorithmic intelligence allows modern Eye-safe Range Finder Modules to deliver reliable measurements across varied applications.
Range Capability and Detection Limits
Another critical performance characteristic is the effective range of the Eye-safe Range Finder Module. While eye safety considerations naturally impact maximum range compared to higher-power alternatives, quality modules balance safety with impressive distance capabilities. Standard eye-safe modules typically offer effective ranges from 5 to 1000 meters, with specialized long-range versions extending beyond 2000 meters while maintaining eye safety. The module's detection limits are equally important, defining both the minimum measurable distance (typically 0.05-1 meter) and the ability to distinguish between multiple objects within the measurement field. Advanced Eye-safe Range Finder Modules implement sophisticated target discrimination algorithms that can identify the most relevant target when multiple options exist within the beam path. This capability proves especially valuable in complex environments where multiple reflective surfaces might confuse simpler measurement systems.
Speed and Update Rate
Measurement speed represents another defining characteristic of high-quality Eye-safe Range Finder Modules. Modern modules can perform measurements at rates from 1Hz up to 100Hz, with specialized high-speed versions reaching several kilohertz for dynamic tracking applications. The Eye-safe Range Finder Module's internal processing capabilities determine how quickly raw measurements can be converted into useful distance data, with higher-performance modules offering minimal latency between measurement and output. For applications requiring continuous tracking of moving objects, the module's update rate directly impacts system responsiveness. Many advanced Eye-safe Range Finder Modules offer variable measurement rates that balance power consumption with performance needs, allowing systems to increase measurement frequency during critical operations while conserving energy during standby periods. This adaptive capability extends operational life in battery-powered applications without sacrificing performance when needed.
How Can Eye-safe Range Finder Modules Be Integrated Into Different Applications?
Communication Interfaces and Protocol Support
The integration versatility of an Eye-safe Range Finder Module largely depends on its communication interfaces. Quality modules typically offer multiple connection options, including UART, I2C, SPI, USB, and sometimes wireless interfaces like Bluetooth or Wi-Fi. These options allow the Eye-safe Range Finder Module to connect with various host systems, from simple microcontrollers to sophisticated computing platforms. The protocol support is equally important, with advanced modules offering standardized command sets that simplify integration. Some Eye-safe Range Finder Modules provide direct compatibility with industrial protocols like Modbus or PROFINET, facilitating seamless incorporation into existing automation systems. The data output formats can usually be configured to match application requirements, with options for raw distance values, processed measurements with statistical information, or even pre-formatted data packages ready for direct application use.
Power Management and Environmental Adaptability
Effective integration also depends on the Eye-safe Range Finder Module's power requirements and environmental adaptability. Quality modules typically offer flexible power options, operating across voltage ranges from 3.3V to 24V, making them compatible with various power supply systems. Many Eye-safe Range Finder Modules incorporate intelligent power management features, including sleep modes that reduce consumption during inactive periods while maintaining rapid wake-up capabilities when measurements are needed. Environmental adaptability is another critical factor, with industrial-grade modules offering wide temperature operating ranges (-40°C to +85°C), resistance to vibration, dust and moisture protection (typically IP67 or better), and electromagnetic compatibility features that prevent interference with other systems. These characteristics ensure the Eye-safe Range Finder Module performs reliably in challenging environments, from dusty construction sites to humid outdoor locations.
Size, Weight, and Mounting Options
Physical integration considerations are often overlooked but remain crucial for successful implementation. Compact Eye-safe Range Finder Modules typically measure between 20mm and 50mm in their largest dimension, with weights under 100 grams, facilitating integration into space-constrained devices. The mounting options vary widely, with high-quality modules offering standardized mounting patterns, threaded inserts, and sometimes quick-release mechanisms for easy installation and maintenance. Some Eye-safe Range Finder Modules come with optical alignment features that simplify the positioning process, ensuring the measurement beam is correctly oriented relative to the host system. Modular designs may offer interchangeable components, allowing customization of optical characteristics like beam width or focusing distance to match specific application requirements. The most integration-friendly Eye-safe Range Finder Modules also provide detailed mechanical specifications and CAD models, helping system designers accurately incorporate the module into their overall product design.
Conclusion
Eye-safe range finder modules combine advanced laser technology with robust safety features to deliver precise distance measurements without risking vision damage. Their key features include specialized wavelengths, power regulation systems, impressive accuracy, variable range capabilities, and flexible integration options. These characteristics make them essential tools across numerous industries where safety cannot be compromised. Selecting the right module requires careful consideration of performance needs, integration requirements, and safety certifications. Hainan Eyoung Technology Co., Ltd. is a key player in the laser optoelectronics sector, providing high-quality laser distance measurement products. Backed by a strong R&D team, in-house manufacturing, and a loyal customer base, we offer OEM/ODM/OBM services with fast responses and precise packaging. Contact us at evelyn@eyoungtec.com for more details.
