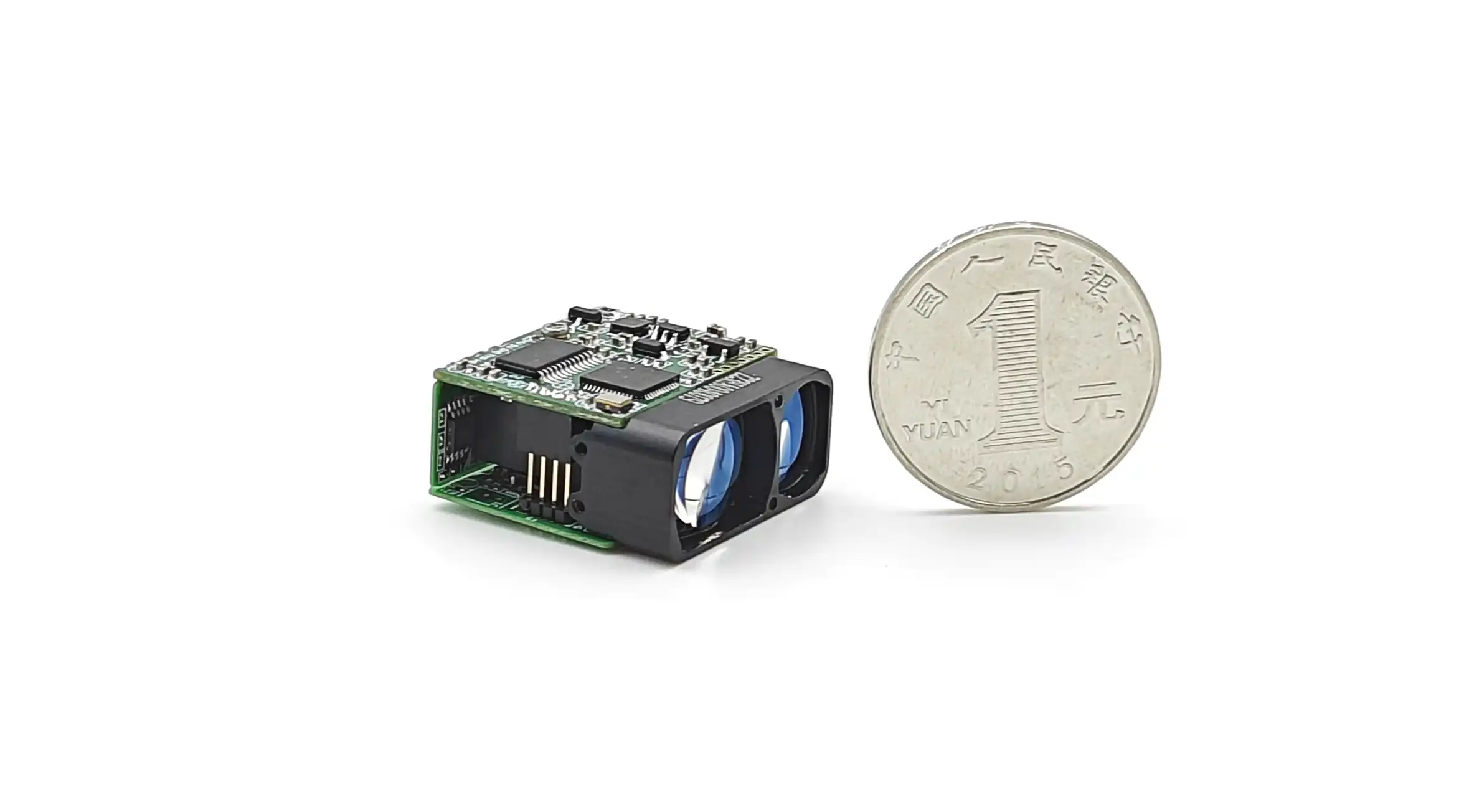

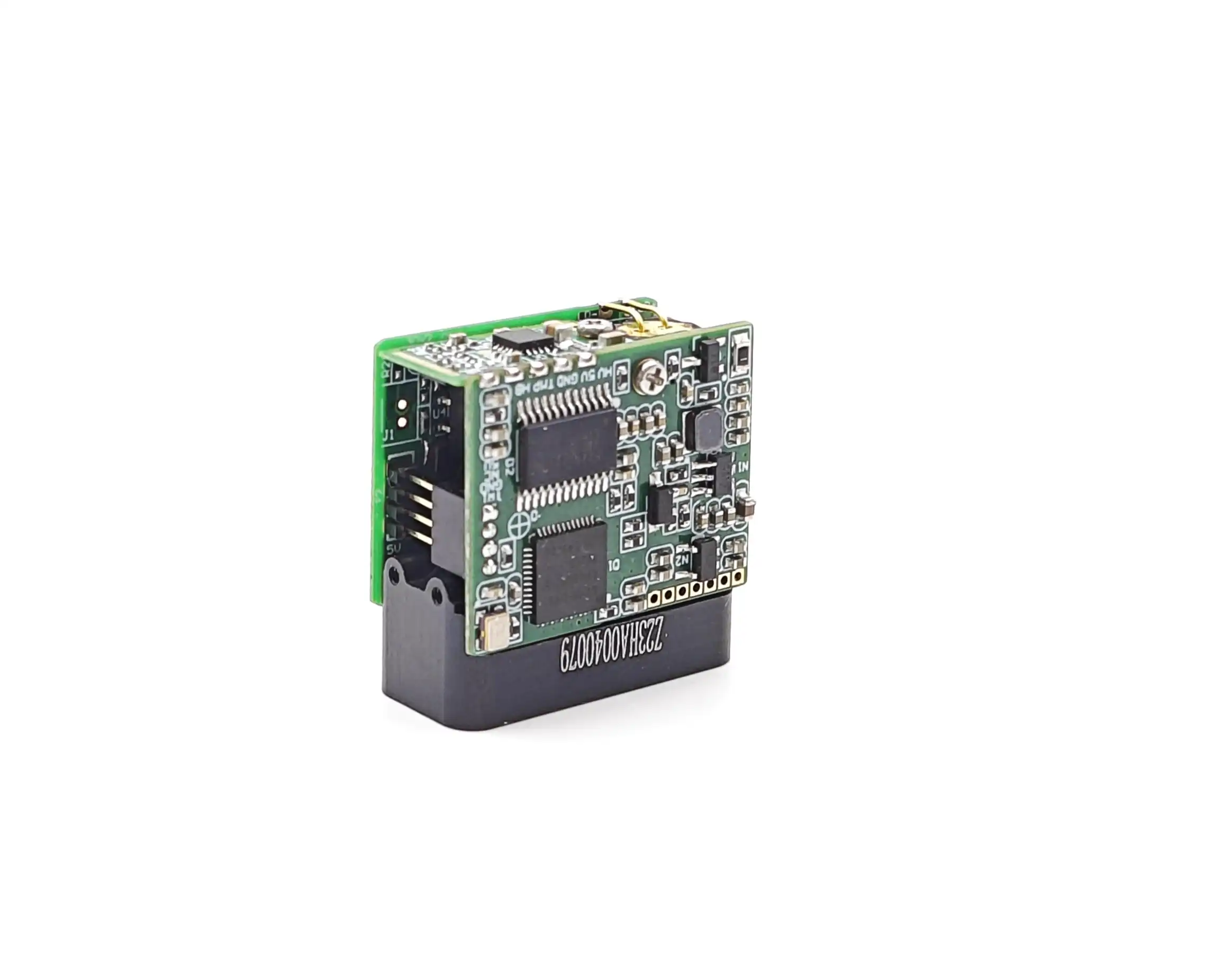

Micro Laser Ranging Module

Model:EY1503C;
Laser wavelength:905±10nm(eye safety);
Distance measurement range:5~1500m;
Ranging frequency (Hz): Single time、1、2
Ranging accuracy:±1m;
Operating voltage:3V~5V;
Power consumption:standby power consumption≤1W;
Small size, square configuration:≤25.8mm×24.6mm×12.8mm;
Light weight:≤10±0.5g;
It can be used as ranging module that meet the need of short distance measurement.
Product Description

Introduction

This Micro Laser Ranging Module is meticulously designed to deliver precise distance measurements across various applications. Thanks to its lightweight construction, the module can be used in situations where mobility and portability are essential. Its compact form provides excellent versatility in installation and use. Thanks to its tiny size, it can be used in applications like unmanned aerial vehicles (UAVs) 、optical sight and microrobotic platforms And it always provides stable measurement results, ensuring accuracy and reliability in various applications. Such as surveying, industrial automation or autonomous navigation systems.

One of the top producers and suppliers of Micro Laser Ranging Module is Hainan Yiyang Technology. We provide dependable quality at low costs from our self-operated operations. Our products can be tailored to match unique customer needs and have international certifications.

Specification

Items

Index

Laser wavelength

905nm



Maximum range (m)

Large target

10~1500



Vehicle(2.3m×4.6m)

10~1500



Human(0.5m×1.7m)

10~1000

Minimum range (m)

5

Ranging accuracy (m)

±1m

Size (L×W×H) (mm)

≤25.8mm×24.6mm×12.8mm

Weight (g)

≤10±0.5g

Ranging frequency (Hz)

Single time、1、2

Accuracy rate

≥98%

False alarm rate

≤1%

Communication port

TTL

Supply voltage (V)

2.5~3.5

Standby power consumption (W)

≤1, power off to achieve zero standby power consumption

Operating temperature

-20~+50

Features

With a square configuration, this type of semiconductor laser ranging module/semiconductor laser rangefinder shares the transmitting and receiving caliber based on the R&D of 905nm semiconductor laser.While ensuring the measurement and accuracy, it greatly reduces the volume and weight, with more extensive application scenarios, and has the following advantages:

1.Integrated design, great shock resistance capacity, high reliability and stable performance;

2.Multiple installation modes: face installation or customized side installation;

3.Adopting the unique patented algorithm of the Company, small volume, light weight, and long measurement range.

Application Fields

Industrial production: The module is used for alignment, position sensing, and quality control functions in industrial production processes. It keeps production processes highly accurate and guarantees exact component placement.

Agriculture and Forestry: The 1500m Laser Rangefinder Modules EY1503C helps with yield estimation, forestry management, and crop monitoring in agriculture and forestry. For the purpose of planning forestry operations, evaluating crop health, and mapping topography, it offers precise distance measurements.

Building layout, structural monitoring, and site surveying are the three main uses of the module in construction and civil engineering projects. It aids in guaranteeing precise measurements for foundation building, site preparation, and structural integrity evaluation.

Handheld photoelectric device;

UAV mounting;

Electro-Optic Systems ;

Other scenario with ranging requirements.
